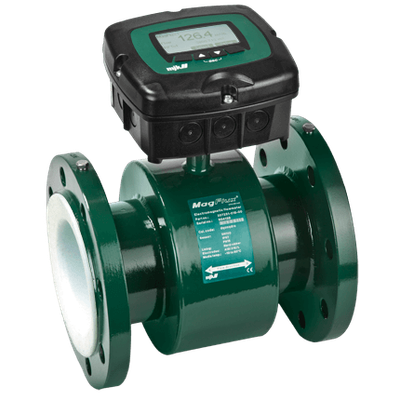

The MagFlux® 7100 is suitable for flow measurements in all kinds of conductive liquids, and the measuring instrument is particularly suitable for flow measurements in water, wastewater, solids and other liquids that contain particles. The MagFlux® unit has no moving parts and do not affect the pressure conditions of the piping system. The MagFlux® 7100 sensor is delivered with EN, AS, ANSI and KS as well as in ISO standard installation lengths. Therefore, the flowmeter provides very accurate measurements - even over a large area.
With electromagnetic flowmeters from MJK, you are guaranteed stable, accurate measurements for years. If you want to know more about flow measurement, or if you have questions about our other measuring instruments, you are always more than welcome to contact our qualified consultants.
-
Supports IP 68 installations
-
FLOW SPEEDS FROM
0.2-10M / S (0.6-30 FT / S)
-
WIDE RANGE FROM DN 15-1000
-
MEASURES MEDIA IN HIGH TEMPERATURES
-
SHORT INSTALLATION LENGTH
-
SENSOR FOR FULL TRACK
- Mounting , FlangesEN-1092-1 / ANSI B 16.5 / AS 4087 / AS 2129
- Material, LiningPTFE / PFA
- Built-in lengthStandard length according to ISO 13359
- AccuracyBetter than ± 0,25 %
- Materials, Housing: Carbon steel, optional stainless steel AISI 304/316
- Material, FlangesCarbon steel, optional stainless steel AISI 304/316
- Material, ElectrodesSteel 1,4571 / AISI 316 TI, optional Hastelloy, platinium, and titanium
