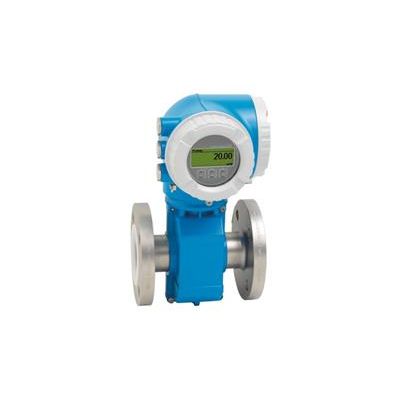

Proline Promag - Model P 300 -Electromagnetic Flowmeter
High-temperature flowmeter for process applications with a compact, easily accessible transmitter. Promag P is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter Promag P 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.
-
Diverse applications – wide variety of wetted materials
-
Energy-saving flow measurement – no pressure loss due to cross-section constriction
-
Maintenance-free – no moving parts
-
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses
-
Reduced complexity and variety – freely configurable I/O functionality
-
Integrated verification – Heartbeat Technology
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures
Device properties
-
Nominal diameter: max. DN 600 (24")
-
All common Ex approvals
-
Liner made of PTFE or PFA
-
Compact dual-compartment housing with up to 3 I/Os
-
Backlit display with touch control and WLAN access
-
Remote display available
- Measuring Principle: Electromagnetic
- Product headline: The flowmeter for highest medium temperatures with a compact, easily accessible transmitter. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.
- Sensor features: Versatile applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross-section constriction. Maintenance-free – no moving parts. Nominal diameter: max. DN 600 (24"). All common Ex approvals.
- Transmitter features: Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.
- Nominal diameter range: DN 15 to 600 (½ to 24")
- Wetted materials: Liner: PFA; PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium; Duplex 1.4462 (UNS S31803)
- Measured variables: Volume flow, conductivity, mass flow
- Max. measured error:
- Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
- Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
- Measuring range: 4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
- Max. process pressure: PN 40, Class 300, 20K
- Medium temperature range:
- Liner material PFA: –20 to +150 °C (–4 to +302 °F)
- Liner material PFA high-temperature: –20 to +180 °C (–4 to +356 °F)
- Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
- Ambient temperature range:
- Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
- Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
- Sensor housing material:
- DN 15 to 300 (½ to 12""): AlSi10Mg, coated
- DN 350 to 600 (14 to 24""): Carbon steel with protective varnish
- Transmitter housing material: AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
- Degree of protection:
- Standard: IP66/67, Type 4X enclosure
- Option: IP69
- Display/Operation: 4-line backlit display with touch control (operation from outside)
- Configuration via local display and operating tools possible
- Remote display available
- Outputs:
- 3 outputs:
- 4-20 mA HART (active/passive)
- 4-20 mA WirelessHART
- 4-20 mA (active/passive)
- Pulse/frequency/switch output (active/passive)
- Double pulse output (active/passive)
- Relay output
- Inputs: Status input 4-20 mA input
- Digital communication:
- HART, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA
- Power supply:
- DC 24 V
- AC 100 to 230 V
- AC 100 to 230 V / DC 24 V (non-hazardous area)
- Hazardous area approvals: ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
- Product safety: CE, C-tick, EAC marking
- Functional safety: Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
- Metrological approvals and certificates: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
- Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV-attestation)
- Pressure approvals and certificates: PED, CRN
- Material certificates: 3.1 material
- Hygienic approvals and certificates: ACS, NSF 61
