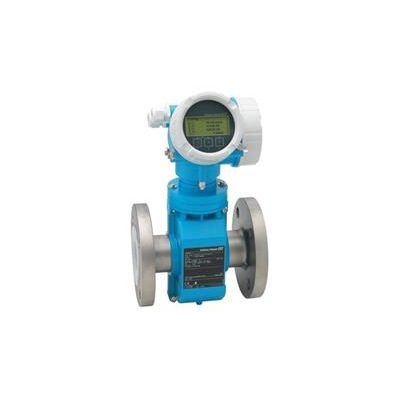

Proline Promag - Model P 200 -Electromagnetic Flowmeter
The flowmeter for highest medium temperatures with genuine loop-powered technology. Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With genuine loop-powered technology, Promag P 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology ensures process safety at all times.
-
Versatile applications – wide variety of wetted materials
-
Energy-saving flow measurement – no pressure loss due to cross-section constriction
-
Maintenance-free – no moving parts
-
Convenient device wiring – separate connection compartment
-
Safe operation – no need to open the device due to display with touch control, background lighting
-
Integrated verification – Heartbeat Technology
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures
Device properties
-
Nominal diameter: max. DN 200 (8")
-
All common Ex approvals
-
Liner made of PTFE or PFA
-
Loop-powered technology
-
Robust two-chamber housing
-
Plant safety: worldwide approvals (SIL, Haz. area)
- Measuring Principle: Electromagnetic
- Product headline: The flowmeter for highest medium temperatures with genuine loop-powered technology. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.
- Sensor features: Versatile applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 200 (8"). All common Ex approvals.
- Transmitter features: Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop‐powered technology. Robust dual-compartment housing.
- Nominal diameter range: DN 15 to 200 (½ to 8")
- Wetted materials:
- Liner: PFA; PTFE
- Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
- Measured variables: Volume flow, mass flow
- Max. measured error: Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
- Measuring range: 4 dm3/min to 1100 m3/h (1 to 4850 gal/min)
- Max. process pressure: PN 40, Class 300, 20K
- Medium temperature range:
- Liner material PFA: –20 to +150 °C (–4 to +302 °F)
- Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
- Ambient temperature range:
- Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
- Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
- Sensor housing material: AlSi10Mg, coated
- Transmitter housing material: AlSi10Mg, coated
- Degree of protection: IP66/67, type 4X enclosure
- Display/Operation:
- 4‐line backlit display with touch control (operation from outside)
- Configuration via local display and operating tools possible
- Remote display available
- Outputs:
- 4‐20 mA HART (passive)
- Pulse/frequency/switch output (passive)
- Inputs: None
- Digital communication: HART, PROFIBUS PA, FOUNDATION Fieldbus
- Power supply: DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output)
- Hazardous area approvals: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC
- Other approvals and certificates:
- Product safety: CE, C-Tick
- Functional safety: Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
- Metrological approvals and certificates:
- Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
- Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)
- Pressure approvals and certificates: CRN, PED
- Material certificates: 3.1 material
