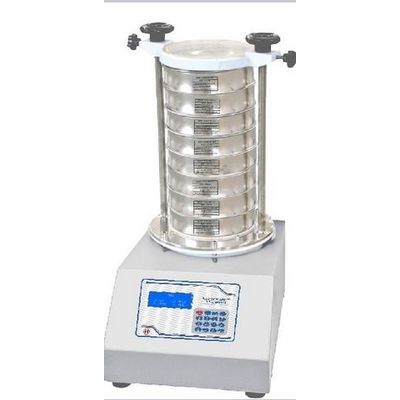

ESICO - Model 918 -Electromagnetic Sieve Shaker
Electromagnetic sieve shaker 918 control is used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring. The controllable electromagnetic drive offers an optimal adaption for every product. Sharp fractions are obtained even after short sieving times. These Sieve Shakers are activated by electromagnetic impulses, they are recommended to perform sieving tests where high precision and performance are important, and where continual and intense uses are required. It is particularly designed for test sieves with a diameter of 200 mm x 50mm h. They are therefore suggested for accurate sieving tests, also on fine materials. These Electromagnetic Shakers are of simple and sturdy construction, can hold up to 8 sieves
- Type Electromagnetic Sieve Shaker
- Warranty 1year
- Brand Name EI
- Model 918
- Usage Industrial, Laboratory
- Operation Mode Intermittent and Continuous Shifting Motion
- Printer rs 232 Port for Serial Printer Using 80 Column Dot Matrix or Thermal Printer
- Dry Sieving Standard (wet Sieve Optional)
- Power 220v Ac, 50 Hz
- dimension (l X B X H) 310mm X 390mm X260mm (approx.)
- Weight 49 Kgs Approx. (without Sieves)
- Intermittent Operation at Intervals (0.5 Sec)
- Capacity up to 8 Sieves (test Sieve Dia Form 200mm X 50mm H)
