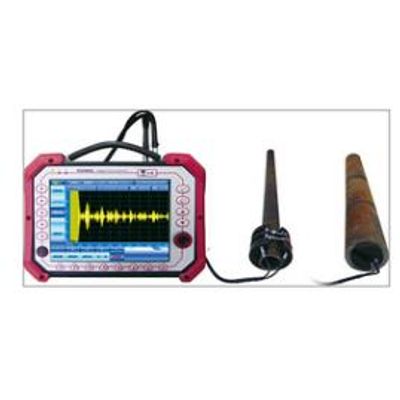

Zhongke - Model HS 900L -Electromagnetic Ultrasonic Low-Frequency Guided Wave Detector
HS900L electromagnetic ultrasonic low-frequency guided wave detector is an electromagnetic guided wave detector that does not require grinding, coupling, long transmission distance (up to 300m), and high detection efficiency.
Most popular related searches
- Suitable for long-distance internal and external corrosion detection of specific steel cables, steel bars, thread steel and other workpieces
- Integrated design, light weight, small size, easy to carry
- Directional transmit (forward, reverse, two-way), no coupling agent is required
- The number of channels is 2 channels, which can be independently received and transmitted by two channels, or the direction can be controlled by adjusting the phase
- With the function of ultrasonic guided wave mode selection dispersion curve
- With multiple functions such as 64-order digital filtering of echo signals, wavelet noise reduction, digital averaging, etc.
- With guided wave sound velocity automatic calibration function
- With the function of full data record and preservation, real-time analysis
- The connecting cable between the instrument and the probe adopts a shielded structure, which has stronger anti-interference ability
- Output test results and defect statistics report
- Suitable for the detection of long-distance overhead pipelines, extension springs, and carbon steel pipelines
