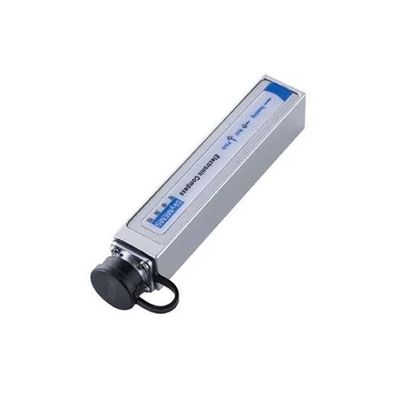

SkyMEM - Model EC2000 -Electronic Compass

High-performance, tilt-compensated electronic compass, widely used in antenna positioning, buoy, robotics and antenna servo system, etc.

• Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
• Tilt Accuracy: ±0.1° (25°C, Full Range)
• Hard/Soft Magnetic Compensation, Tilt Compensation
• Support User Calibration, IP67 Protection
• Wider Input Voltage: 5~24VDC
• Interface: RS232 (default) or RS485
• Wide Working Temperature: -40~+85ºC
• Small Size: L113*20*20mm

EC2000 3D electronic compass sensor widely used in antenna pointing

Users of geostationary satellite-based communication systems have to calculate the angles needed to point their transmitting antennas toward orbiting satellites. The satellite appears to remain in one spot in the sky. Pointing a satellite antenna at a geostationary satellite is a matter of calculating the elevation and azimuth for the ground station antenna so that it points directly at the orbital location of the satellite. To realize demands on satellite automatically and quickly, the electronic compass is already an essential part of vehicle-mounted antenna servo system

SkyMEMS EC2000 3D electronic compass sensor is able to sense both direction and pitch and roll at high accuracy, which has hard and soft magnetic compensation, and it has low power consumption, and can work in harsh environment. EC2000 has been widely used in antenna pointing.

EC2000 3D electronic compass sensor widely used in Robot Orientation

For indoor robot, the dead reckoning method using only the encoder information can’t avoid the error due to slip, wheel diameter error, and uneven floor. Using electronic compass to compensate the pose error obtained from the wheel encoder. The heading angle from the electronic compass substitutes the dead reckoned heading angle, and is used to calibrate the dead reckoned position data. for outdoor robot, the electronic compass is also cost-effective solution to provide accurate heading, pitch and roll for robot orientation.

EC2000 electronic compass is IP67 protection level which is suitable for the applications in harsh environment, and has been widely used in the robot orientation.

EC2000 3D electronic compass sensor widely used in Buoy

The buoy’s sensors included two types: for air and water temperature, an anemometer for wind speed and direction and an electronic compass within the buoy to compensate for the effects of buoy rotation on wind direction.

Electronic compass is used to provide the real-time position of the wave buoy. SkyMEMS electronic compass module uses magnetic sensors with wide dynamic range and ideal linearity, it enjoys the high accuracy and reliability, it has been widely selected by buoy applications.

EC2000 electronic compass from China factory with High Performance 3D Electronic Compass sensor is specially designed for antenna pointing and platform system integration, it is a perfect solution for Compassing & Navigation, Dead Reckoning Backup to GPS Systems, Marine Navigation, Antenna Positioning, Buoy, and Land Surveying., and has been widely applied in the following fields:

• Antenna Positioning
• Robot Orientation
• Buoy
• Laser Range Finder
• Drones and Unmanned Systems

Why Selecting EC2000 Electronic Compass?

China EC2000 3D electronic compass sensor is designed and produced by SkyMEMS, it enjoys high performance and accuracy, and high reliability. It is a popular electronic compass sensor in the market, which has the main following advantages:

High Accuracy, High Performance and Powerful Functions

As a China EC2000 3D electronic compass sensor supplier is designed and produced by SkyMEMS, it enjoys excellent technical advantages:

• Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
• Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
• Wider Input Voltage: 5~24VDC (up to 36VDC)
• Interface: RS232 (default) or RS485
• Wide Working Temperature: -40~+85ºC
• Widely working temperature: -40~+85°C

EC2000 3D electronic compass sensor adopts big brand components, advanced production craft, fully calibrated, advanced SkyMEMS algorithm, which assured that our products have real actual precise and perfect performance.

Aerospace Level Reliability, 12-step Strictest Quality Control

We have advanced product test team and measurement equipment, and we cherish the quality as the life of the company, all our products must pass the strictest quality control procedures, our unique 12-step quality control assures our products enjoy top level quality.

Competitive Price, ODM supported

With strict cost control and massive production, we can provide the most competitive cost-effective prices, and we have abundant ODM service experience for customers around the world, that is why we can build up long term win-win cooperation with our customers.

Successful Applications in 10+ Fields, 100+ Customers are Using

We are continuously focusing on MEMS measurement & control technologies, and have developed the most advanced and reliable 3D electronic compass sensor EC2000. and EC2000 has been widely used in s Antenna Positioning,  Robot Orientation, Buoy, Laser Range Finder, and Drones and Unmanned Systems, etc. and now more than 1000 customers are using our electronic compass around the world.

World-class Production Line, Fast Delivery

We have the world class production line to assure that the production procedures are scientific, precise and normative, which also can assure our products to be fast delivered.

Service with Heart, Professional Technical Support

We have the professional technical support engineer team, which can provide 24-hour technical support and excellent after-sale service.

Serving customers with heart is the principle of SkyMEMS, Customer demand is the fundamental driving force of our development.

We treat our customers with heart, customers’ satisfaction is the direction and target of SkyMEMS. Through continuously technology innovation and service upgrading, we will realize win-win cooperation with customers.
