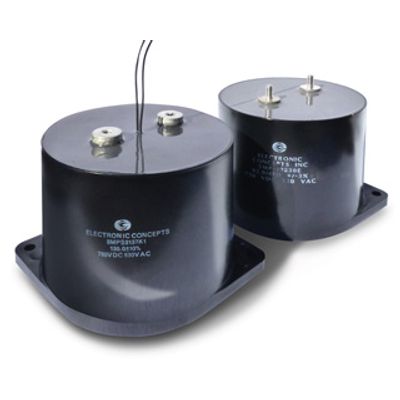

Electronic Concepts - Model 3MP Series -Metallized Polypropylene Capacitor for High RMS Currents and AC Filtering

The 3MP Series Metallized Polypropylene Capacitor is designed for contemporary high-energy AC filtering applications, capable of handling high RMS currents. It features a robust integrated flange allowing versatile mounting positions and offers both male and female terminal options. A unique attribute is its capacity to include a thermal sensing device at the capacitor's hot spot. This setup includes a normally open or closed thermal cut-out (TCO) potted at the geometric center of the device, designed to trigger user-defined circuits at critical temperatures. The capacitor can also accommodate other sensing technologies as per customer specifications. It can withstand a DC potential of 1.5 times the rated voltage for one minute without damage or breakdown, discharged through a minimum resistance of 1 OHM per volt minimum. The polypropylene material used ensures a dissipation factor of less than 2.1 x 10^-4 across the operating temperature range of -55°C to +105°C, and frequencies up to 1MHz.

Designed to Handle High RMS Currents

For today’s high energy AC filtering, the 3MP series has a robust integrated flange for versatile mounting positions along with male and female terminal options. It’s most unique feature is that it has been outfitted to accept a thermal sensing device located at the capacitor hot spot. A normally open or closed thermal cut-out (TCO) is potted in the geometric center of the device. As the capacitor reaches critical temperatures the TCO opens and a user defined circuit will trigger the appropriate action. The capacitor can also accept other sensing technology per customer specification.

Capacitance Range

20µF to 325µF

Capacitance Tolerance

Standard tolerance is ±5%.
Tolerance of ±3% is also available

Operating Temperature Range

-55°C to 85°C
Hot Spot Temperature Calculation: H.S.= Tamb + (I x I x Rs)

Enclosure/Construction

Dry metallized polypropylene in a thermoplastic housing with flame retardant potting.
All construction materials meet or exceed UL94-V2 rating.
UL file number: File E225556, Vol. 1

Voltage Rating

VAC: 300VAC to 900VAC
VDC: 450VDC to 1350VDC

Quality Control

Capacitance
Tolerance
Dissipation Factor
1.5x Rated DC Voltage
Insulation Resistance
Equivalent Series Resistance
Process and inspection data are maintained on file and available upon special request.

UL recognized
Long Life: > 100,000 hours
Low ESR
High RMS current capability
High surge voltage capability: 1.5 x VDC
Thermal cut out safety option
