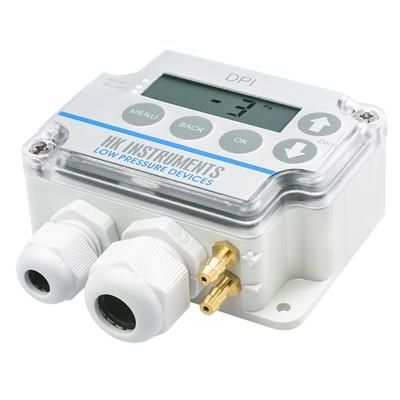

HK Instruments - Model DPI -Electronic Differential Pressure Switch
FromProdual UK Ltd.
The DPI series electronic pressure measuring devices are engineered for building automation in HVAC/R industry. The most technologically advanced and versatile electronic differential pressure switches on the market, combining up to two relay outputs and 0–10 V output options.
Most popular related searches
pressure switch
electronic pressure monitoring system
electronic pressure switch
pressure monitoring system
electronic pressure monitoring
pressure monitoring
electronic monitoring system
HVAC industry
HVAC
industrial HVAC
The DPI includes the following field selectable features:
- Configurable switching point: Open on rise or fall in pressure
- Hysteresis of setpoint
- Measurement units (Pa, kPa, mmWC, inWC, mbar)
- Measurement range (4 ranges per model)
- Output signal (0−10 V, NO/NC)
- Span and zero point calibration
- Accuracy (from FS):±1.5 % (±0.7 % with span point calibration) (including: general accuracy, temperature drift, linearity, hysteresis, and repetition error)
- Long term stability, typical 1 year:±1 Pa (±8 Pa without autozero element -AZ)
- Zero point calibration:automatic with autozero element (-AZ) or by pushbutton
- Supply voltage:21–35 VDC / 24 VAC ±10 % (without -AZ option), 24 VDC ±10 % / 24 VAC ±10 % (with -AZ option)
- Current consumption:35 mA + relays (7 mA each) + AZ (20 mA) + 0…10 V output (10 mA)
- Output signals:0…10 V, L min 1 kΩ, Relay output 1 (250 VAC / 30 VDC / 6 A), Optional relay output 2 (250 VAC / 30 VDC / 6 A)
- Operating temperature:-10...+50 °C
- Response time:0,5...10 s
- Protection standard:IP54
