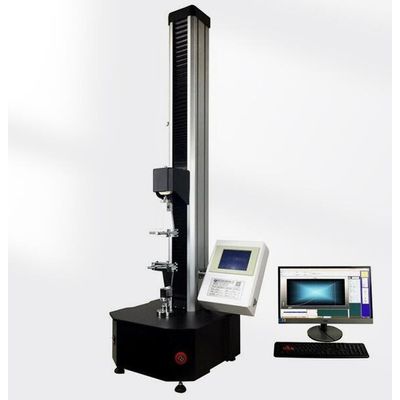

QINSUN - Model QS -Electronic Fabric Strength Tester
[Scope of application] It is used to test the mechanical properties of various materials such as fabrics, non-woven fabrics, paper, ribbons and non-woven fabrics, such as breaking strength, elongation at break, tearing, peeling, bursting, slippage and seam slippage. It also has various test functions such as constant speed, constant displacement, constant time, constant load, and constant elongation.Breaking strength (strip method): GB/T3923.1; ISO13934.1; ASTM D5035
(grab method): GB/T3923.2; IS013934.2; ASTM D5034
Tear strength (tongue tear): GB/T3917.2; ISO13937.2; ASTM D2261
(Trapezoid tear): GB/T3912.3; ISO9074.4; ASTM D5587
Suture slippage: GB/T13772.1/2/3; ISO13936.1/2; ASTM D434
Peel strength: FZ/T01085; ASTM D2724/3936; AATCC 136
FZ/T80007.1;FZ/TO1010;FZ/T60011
Steel ball breaking: GB/T19976; FZ/T01030; IS03303; ASTM D3787/6796 Single yarn strength: GB/T3916/14344; ISO2062; ASTM D2256
Single yarn strength: GB/T3916/14344; ISO2062; ASTM D2256
Other standards: GB/T4689.6; GB/T13763; GB/T13773; GB/T14800;GB/T15788; GB/T16989;FZ/T01031;FZ/T20019;
FZ/T60005; FZ/T60006; FZ/T70007;ISO 13935.1/2;ASTM D1683; ASTM D4964;ASTM D5733/5735;BS 3320
1. Measuring force range: 30KG; 50KG; 100KG; 250KG; 1-100% of full scale; 2. Measuring force accuracy: ≤ soil 0.5%F.S
3. Stretching speed: 1 ~ 50OMM/MIN (arbitrary setting) 4. Recovery speed: 1 ~ 50OMM/MIN (arbitrary setting) 5. Sampling frequency: > 1000 times / second
6. Elongation resolution: ≤0.01MM 7. Effective stroke: 600MM
8. Power supply: AC220V±10%9. Power: 600W
10. Dimensions: 670×480×1400MM11. Net weight: 115KG
ps: (WLJCDM809)
