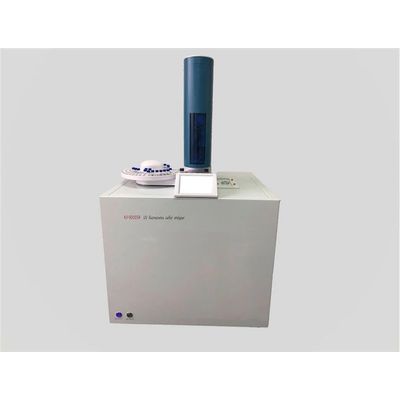

ESI - Model 9000S -Elemental Combustion Analyzer for Total Sulfur By UV-Fluorescence

Total Sulfur content in hydrocarbons by combustion and UV fluorescence has been established as the preferred method to characterize feedstock, intermediate streams and finished hydrocarbon products due to its sensitivity, linearity, dynamic range and ruggedness. The KY9000S is developped for the total Sulfur content determination in gasoline according to the ASTM D5453 Standard Test Method. Since sulfur is a ubiquitous element in hydrocarbon streams responsible for many undesirable effects like catalyst poisoning, detrimental product quality and ecosystem pollution, there is a need to quantify and monitor its content in every step of the industry´s technical operations.

Common applications

• Chemicals
• Refinery Products (e.g. Crude Oil, Naphta, Lubricants, Gasoline, Diesel Fuel, Fuel Oil)

Elemental combustion analyzer for Total Sulfur by UV-Fluorescence 9000S Simply the Best Optimized vertical combustion combined with UV fluorescence detection for total sulfur determination Fast, sensitive and reliable analysis of widely varying sulfur contents in different types of liquid fuels, combustibles and related matrices

• Compact design, smallest footprint in today’s market
• Short start-up time
• Fast and precise measurement
• Low maintenance, optimal combustion and conditioning of gases results in near to zero downtime
• Ultra-low detection limit, high stability and reliability

Simply the Best

• Optimized vertical combustion combined with UV fluorescence detection for total sulfur determination
• Fast, sensitive and reliable analysis of widely varying sulfur contents in different types of liquid fuels, combustibles and related matrices
• Compact design, smallest footprint in today’s market
• Short start-up time
• Fast and precise measurement
• Low maintenance, optimal combustion and conditioning of gases results in near to zero downtime
• Ultra-low detection limit, high stability and reliability

Complies with international standards like: ASTM, ISO, EN and IP

• ASTM D5453, EN ISO 20846
• ASTM D6667, ASTM D7183
• ISO 17198, GBT 34100-2017
• DB51/T 1689, GB/T 11060.8

• Sample Introduction: Syringe Liquid Module
• Principle: Combustion and fluorescent UV analysis
• Target: Sulfur
• Working Range: 0.05 – 10,000 mg/kg
• Accuracy: Standard deviation
• Standard deviation
• Quantity of Sample: 5 – 100 uL

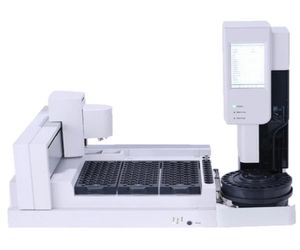

• Sample Tray: 156 Positions or 19 positions
• Gases:
• High Purity Oxygen (better than 99.99%)
• High Purity Argon (better than 99.99%)
• Repeatability:
• 1.0 mg/L, ±0.2 mg/L
• 1.0 mg/L<X
• 100 mg/L<X
• Sulfur analysis
• LPG
• Condensates
• Naphtha
• Diesel
• Aromatics
• Natural Gas
• Mineral Oil
• Gasoline
• Gaseous Hydrocarbons
• Jet Fuel
• Standard Test Methods: ASTM D5453, EN ISO 20846, ASTM D6667, ASTM D7183, ISO 17198, GBT 34100-2017, DB51/T 1689, GB/T 11060.8

Technical Specifications

• Furnace Configuration: Dual Combustion Zone
• Furnace Temperature: 1100 °C
• Power: 200/220/240V AC±10%, 50/60Hz
• Injection Volume: 0.1 uL - 250 uL
• Sample Type: Liquid
• Operating: 15°C to 35°C (performance guaranteed)
• temperature: 5°C to 40°C (operation guaranteed)

• Digital flow controller for gases
• Constant speed liquid injector for manual injection (Both Vertical and Horizontal available )
• Certified calibration standards
