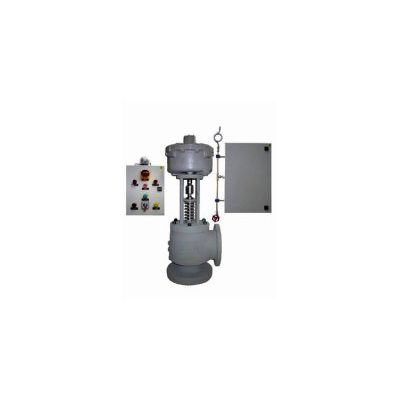

AIRMATIC - Elettropneumatic Safety Relief Valve

Special safety valve with electropneumatic command that can be self- or servo -actuated. This is a `sacrifice` valve particularly suitable for the start-up phase of the plants that, instead of normal safety waives, can be also isolated on the line (e.q. for maintenance).

Most popular related searches

Function

Safety valve

Diameters

(Inlet) DN from 25 to 150 - (Outlet) DN from 32 to 200

Connections

Flanged (ANSI o NP)

Max Rating

ANSI 600

Body Materials

Carbon steel, alloy steel, stainless steel

Trim Materials

Stainless steel (AISI 410) (std.)

Regulated pressure range

Up to 68,5 barg

Max temperature

550°C

Min tempreature

20°C

Lever Option

Without lever
