Co-Effort - Elevator Guide Rail CNC Milling Machine
Elevator Guide Rail CNC Milling Machine consists of power head components, table components, fixture components, chip removal components, lubrication system, hydraulic system, electrical control and other major components. This machine tool is designed and manufactured by our company according to the processing requirements and processing technology of the T70B - T140B elevator guide rail, which is specially used for the processing of the end faces and large back faces of the elevator guide rail.

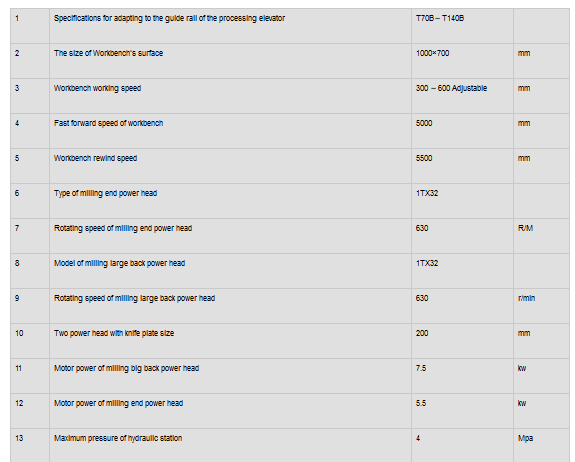

- Type: F« T70B TS9 T90 T140B Elevator Guide Rails
- Machining Accuracy: SO.05mm
- Diameter Of Cutter Head: O 200mm
- Control: PLC
- Workbench Working Speed: 300 ~600mm Adjustable
Elevator Guide Rail CNC Milling Machine Overview
The machine tool is driven by servo motor and ball screw. All the movements use PLC automatic control. It can guarantee the automatic control of fast forward, milling end, fast forward, fast forward and milling back to the end, and return to the original point quickly. The touch screen is easy to understand and easy to adjust.
The guide rail of machine tool is lubricated by automatic lubricating pump to reduce wear and improve the service life of machine tools. The ball screw of machine tool is lubricated by the way of soaking in the lubricating oil. All necessary safety protection devices and protective covers are provided to ensure the safety of operators and machine tools.
