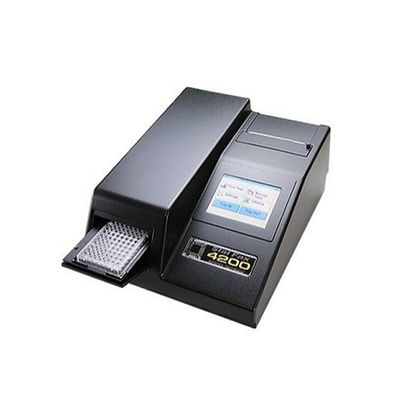

ELISA Stat Fax - Model 4200 -Semi-Automated Microplate Reader

• Economical open system & Compact design.

• Test results in 10 seconds per 96 well plates.

• Multiple calculation modes.

• Touch screen display and onboard printer.

• Dependable maintenance-free design.

• Up to 120 user-programmable stored tests.

• Custom filter configurations are available.

Linear Measurement Range

• 0.0 to 4.0 Absorbance units (A)

Photometric Accuracy

• +/- (1% +/- 0.010) 0.0 through 1.5 ABS

• +/- (2% +/- 0.010) 1.5 through 3.0 ABS

Stability

• Drift of no more than 0.005A in 8 hours

Light Source

• Halogen lamp with lamp saver feature

Standard Wavelengths

• Standard: 405, 450, 492, and 630 nm

• 6-VIS: 405, 450, 492, 545, 600, and 630 nm

• Filter options from: 405 - 700 nm

Vessel

• Standard 96-well microplates or strip trays

Display

• Interactive touch screen 4.5” x 3.5” (14.5 cm) LCD, color graphic display

Printer

• Thermal with graphic capability, approximately 64 characters per line

Speed

• Reads, calculates and prints results, in approximately 30 seconds per 12-well strip

Calculation Modes

• Single point calibration by standard or factor, multi-point calibration with point-to-point curve fit, linear regressions with log, linear, and log-logit selections

Test Storage

• Stores 120 tests; stores all parameters including wavelengths, calculations, unit codes, linear and normal ranges, standard values, test names, and previous standard curve.

Dimensions & weight

• Approximately 13.5” x 17” x 8.25” (34 cm x 43 cm x 21 cm)

• weight: 12 lbs (5.5 kg)
