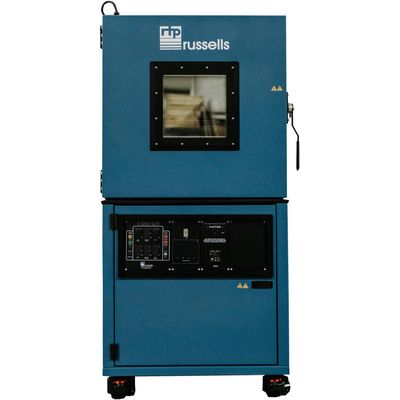

Elite - Model G-Series -Reach in Temperature Humidity Chambers
The G-Series Elite environmental reach-in test chambers line includes industry-leading features and accessories which offer superior performance and reliability. Offered in four standard sizes, our temperature/humidity chambers provide users the widest range of temperature or temperature and humidity environments on the market. Temperature and humidity chambers are an excellent choice for thermal cycling, steady state conditioning, product reliability testing, and other applications.
The G-8 Elite Series reach-in environmental test chamber offers 8 cu. ft. or 226 liters of internal workspace. Single-stage or cascade refrigeration offers users a wide performance range to achieve complex test requirements, while optional boost cooling provides cryogenic fluid injection to expedite pulldowns and decrease cooling times.
Equipped with temperature only or temperature and humidity systems, the G-8 Elite Series humidity conditioning chamber offers industry-leading performance, flexibility, and reliability.
Featuring the widest assortment of standard features among reach-in environmental test chambers, the G-8 Elite environmental test chamber is equipped with the following performance added advantages:
- More heating, cooling, and airflow capacity than competitor models for rapid heat up and pull down, and precise temperature uniformity
- Responsive expansion valve and bypass refrigerant control put all of the refrigeration horsepower to work for you
- Maintenance is simplified with full three-sided access to base mounted system components
- All models available with cryogenic cooling
- CE certification
- Continuous TIG welded 304 stainless interior liner
- Non-settling oven grade fiberglass insulation, 0.25 K factor
- Chamber drain
- Ease of access removable service panel on three sides
- Dual silicone one-piece door gasket with mitered and vulcanized corners
- Multi-pane tempered heated viewing window minimizes condensation
- Durable, maintenance free powder coat exterior finish
- 3” access ports
- Heavy duty casters swivel for portability, with incorporated leveling pads
- Shelf pilaster for use with option stainless steel shelving
- Proprietary single-hand door latch
- Temperature range: -70°C to +180°C (-94°F to +356°F)
- Humidity range: 10% RH to 95% RH
