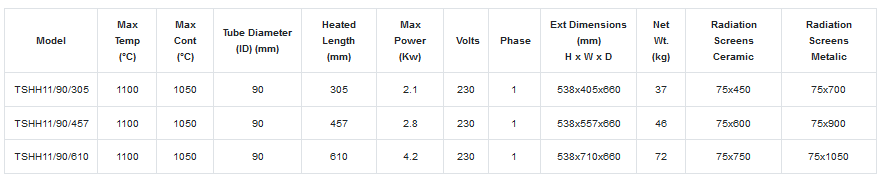

Elite - Model TSHH -Split Tube Furnace
The TSHH split tube furnace is designed to meet the needs of `in-line` thermal processes, and for when rapid cooling is required. Free radiating high grade resistance wire elements supported on ceramic tubes. Vertical versions are available which have a separate console.
Most popular related searches
- This furnace range is bench mounted and can be supplied with controls mounted as an integral part of the furnace body or in a remote console on two meters of interconnecting cables.
- This Horizontal furnace body is split into two halves and hinged at the rear.
- The ability to open the furnace makes it easier for operators to exchange the work tube or insert vessels.
- Energy efficient, high quality, low thermal mass insulation provides fast heating and cooling.
- A work tube is not supplied as an integral part of the furnace and therefore needs to be ordered with the furnace as it is an essential accessory.
- The furnace accepts a range of work tubes up to 90mm outside diameter when used with tube reducer inserts.
- `N` type thermocouple is used in these furnaces.
- High end Microprocessor PID controller.
- Work tubes of various materials, lengths and diameters for use in the furnace.
- The work tubes are available for containment of atmosphere or protection against process contaminants.
- A variety of end seals for work tubes to allow processing under vacuum or gas atmospheres.
- Multi segment, multi program storage controller.
- Over temperature controller.
