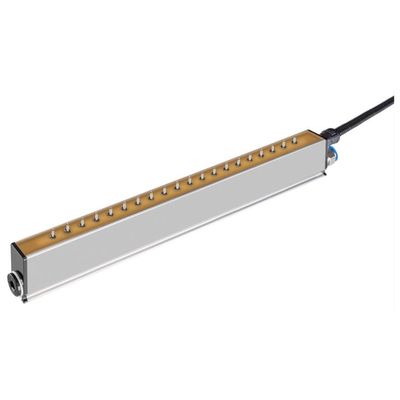

Eltex - Model flexBAR R60L - Discharging Bar for Static Control
The Eltex flexBAR R60L is a high-performance discharging bar designed for static control applications, particularly in industrial settings where managing electrostatic charge is critical. The bar features free-standing, air-assisted spring tips that facilitate a significant passive discharge effect, enabling efficient operation at even low alternating current high voltages. A distinctive feature of the flexBAR R60L is its hollow spring tip that can be optionally equipped with a small airflow, which not only enhances the effective range of static charge removal but also supports the continuous cleaning of emission tips, ensuring prolonged operational reliability. The bar measures from 30 mm to 1200 mm in length and from 15 mm to 2715 mm in width, with a height of 20 x 45 mm, providing flexibility for various installation requirements. Employed in environments requiring precise and efficient static discharge, the flexBAR R60L is suited for high-end applications, making it a valued tool for electrical engineers and technical specialists.Most popular related searches
HIGH-END discharge for highest discharge performance
The VARIO discharging bar flexBAR R60L with its free-standing, air-assisted spring tips has a very high passive discharge effect, which enables active operation even at low AC high voltage. To increase the range, a small amount of air optionally flows through the hollow spring tip. The air flow additionally serves the continuous cleaning of the emission tip.
- Range : 30 – 1200 mm
- Active length : 15 – 2715 mm
- Dimensions : (WxH) 20 x 45 mm
- Compressed air : optional
