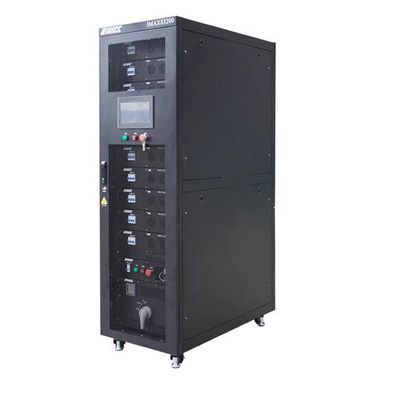

Emax - Model IMAX83200 -200kW Liquid Cooling Load Bank Rack with Manifold
The 200kW IMAX83200 Liquid Cooling Load Bank Rack is designed to simulate the NVIDIA GB200, as required by our customers. It boasts a single energy density of 10kW/U and is maintenance-free and capable of continuous operation. The complete product package includes liquid cooling modules, cabinets, and a manifold, allowing customers to plug and play right after receiving the product. The entire system is less than 42U tall, making it easy to move. A central control panel controls all liquid cooling modules.
Most popular related searches
- Working Cycle: Continuous operation.
- Ambient temperature: -10?~50?
- Liquid direction: Bottom feed, right inlet/left outlet
- Heat transfer fluid: 25% Propylene Glycol/Pure water
- Operating environment humidity: 0~95%
- Dimensions: Height 42U
- Instrumentation: Digital metering (V, A, kW) and data logging.
- Control Power: Via external 400V AC / Testing circuit.
- Inlet water temperature: 5-40?
- Delta temperature < 12ºC
- Load Elements: High-capacity Nichrome load elements. Elements are fully supported with stainless steel rods and high-temperature refractory ceramics for quick heat discharge.
- Safety Features: Over-temperature, over/under voltage, over/under pressure, and current imbalance protection.
- Load Connections: 5-core industry plug/socket
- Daisy Chained: Multiple load banks can be hooked together for higher load capacity.
- Enclosure: Heavy gauge steel indoor enclosure with powder-coat finish. Hinged access doors with lockable latches. Forklift pockets for easy mobility.
