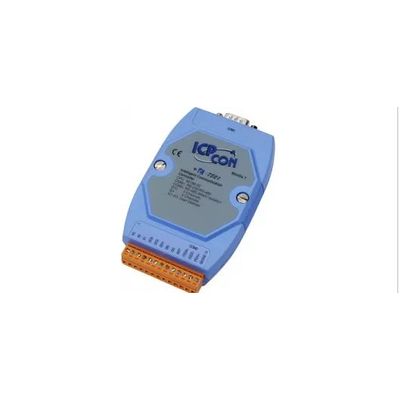

ICP DAS USA - Model I-7521 -Embedded Communication Controller with 1 Port.
Intelligent Communication Controller with one RS-485 port and one RS-232/RS-485 port
- CPU: 80188
- 20MHz; for I-7521/7522/7523
- 40MHz; for I-7524/7527
- SRAM:
- 128K bytes for I-7521/7522/7523
- 256K bytes for I-7524/7527
- Flash ROM:
- 256K bytes for I-7521/7522/7523
- 512K bytes for I-7524/7527
- EEPROM: 2048 bytes
- Communication speed: 115.2K BPS max.
- RS-232 interface connector: Male DB-9
- RS-485 interface connector for:
- I-7521/7522/7523:
13-pin screw terminal block ( accepts 16 ~ 26 AWG wires )
- I-7521/7522/7523:
- 3.81mm pitch
- RS-485 interface connector for:
- I-7524/7527:
14-pin screw terminal block ( accepts 16 ~ 22 AWG wires ); 3.5mm pitch
- I-7524/7527:
- D/I: 3.5V~30V
- D/O: 150mA/30V
- Accessories: One download cable, one mini screw driver
- Din Rail Mount
