WB Johnson - Model ERK-525 -Emergency Response Kit

The ERK-525 Emergency Response Kit is a comprehensive radiation monitoring system engineered for field applications to detect a wide spectrum of radioisotope contamination. It features the DSM-525, a dual-probe survey meter capable of assessing contamination and radiation dose levels ranging from micro-R to 200 mR/hr. This system is distinctive in its ability to function with both probes connected simultaneously, eliminating the need for probe switching and simplifying operation through a selector switch mechanism. The entire system, including all necessary accessories, is protected by a durable water-resistant carrying case, ensuring both ease of transport and resilience in various environmental conditions. This allows for efficient and reliable radiation monitoring in diverse emergencies.

EMERGENCY RESPONSE KIT/Dual Probes

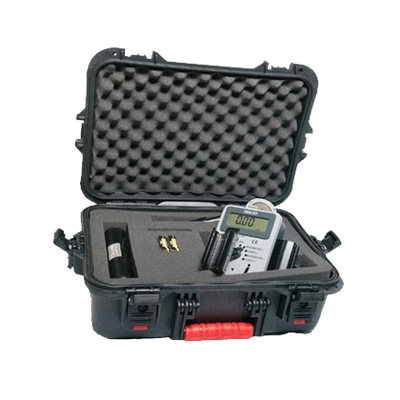

The ERK-525 is a complete portable radiation monitoring system designed to measure a broad range of radioisotope contamination under field conditions. The DSM-525 is a dual probe (connected at the same time) survey meter that measures contamination and dose levels from micro-R to 200 mR/hr. The ERK-525 does not require changing probes to obtain the full operational benefits of the system; the user needs only to turn the selector switch to the desired probe and the rest of the operation is automatic. The instrument and accessories are contained in a very durable water-resistant carrying case for easy storage and portability.

Large digital display
Auto ranging units
Dual mode capacity for
Dose rate & count rate
Hp-265 and mrsp-1 probes

Dose/Counts Switch: Change Dose Rate to Count Rate by Toggling an External Switch
Display: LCD 4-Digit x .75″ LCD w/LED Backlight
Two External Probes: HP-265 (GM) and MRSP-1 (Scintillation)
Dose Range: See Probe Specifications Below
Energy Range: See Probe Specifications Below
CPM Range: 0-999.9 Kcpm or Kcps
Probe Linearization: Internal adjust for calibration constant and dead time
Scaler Ranges: 0-999.9 Kcounts
Scaler Count Time Ranges: 10-2550 Seconds (10 second increments)
Alarms: 5-95% of Range
Diagnostics: Low Battery, Over-range – Audible & Visual Alarms
Range Adjustment: Auto-Ranging All Scales
Electrical Non-Linearity: < 5% Full Scale
Response Time: Fast – 10-2550 Seconds (adjustable) | Slow 10-250 seconds (adjustable)
Drift: < 5%
Environmental: -20°F[-28°C] to 140°F[60°C] 5-95% RH IPX4 Housing
High Voltage Adjustable: 400-1250 VDC | Regulation +-1%
Battery: 6 – “AA” Alkaline (nominal 200hrs Operation)
Dimensions: 6.25″(16cm) H x 4″ (10cm) W x 7″(18cm) L
Weight: 2.5 lbs. (1.2 Kilos)
