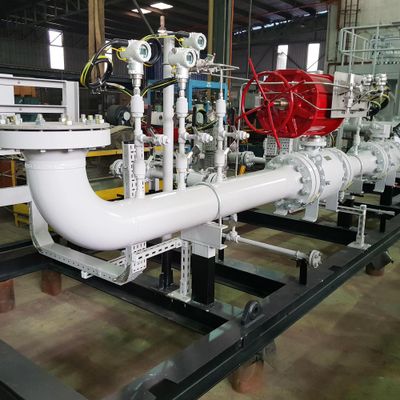

RMA - Model ESD -Emergency Shut Down System

The inlet ESD valve is designed to provide the automatic isolation of downstream facilities in the pipeline system, in the event of emergency. Ball valve with failed close, spring return pneumatic actuator is considered in design for remote operation and automatic shutdown. Other type of actuator can be available such as electric motorized, gas over oil, etc. PLC based Emergency Shutdown System Panel with Redundant CPU (SIL-3 rated), fault tolerant and fail-safe system is provided to perform the shutdown logic can be provided.
