Emission Rx - Fugitive Emissions Thermal Oxidizer
Fugitive Emissions Thermal Oxidizer For Destruction Of Fugitive Emissions & EPA Toxic Release Inventories Gases (TRI)
Features
- EPA Compliant for TRI Gases
- NFPA Area Classification
- Data Logger for EPA Compliance
- Active Thermal Combustion Control
Applications
- Natural Gas Processing Plants
- Analyzer Measurement Shelters
- Tank Farm
- Marine Gas Offloading
- Analyzer Vent Line Manifolds
Methodology

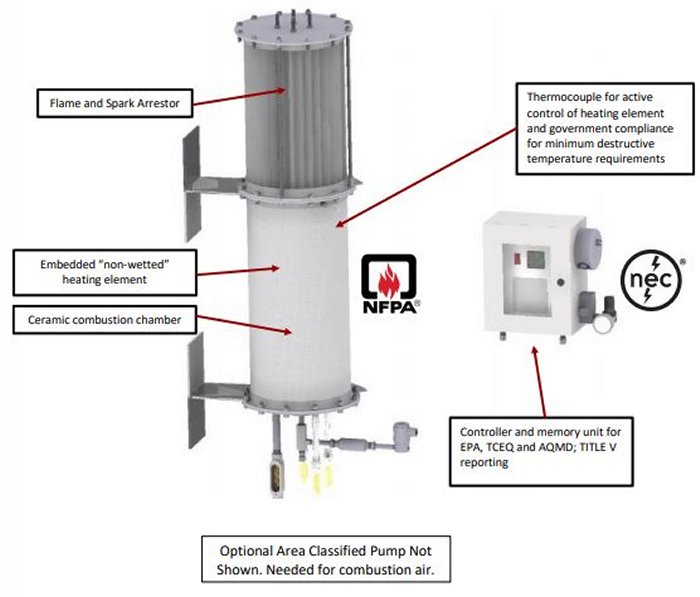

Patent pending combustion chamber utilizing the Venturi effect along with a long life heater element that is not exposed to the combustion chamber to extend the life of the heating element (MTBF est. 3.3 yrs.), while being able to maintaining the minimum combustion temperature requirement of 1400°F [760°C] for the destruction of Fugitive Emissions &TRI gases at a 99% destructive efficiency. The Emission Rx™ Thermal Oxidizer will report the combustion temperature to comply with the regulatory requirements for a minimum combustion temperature to maintain at the 99% combustion efficiency needed to be in compliance. A data logger is used for governmental compliance reporting.
Downloads related to this product
Videos related to this product
-
Combustion Air to Gas Requirements Emission Rx Thermal Oxidizer -Video
Combustion Air to Gas Requirements for Thermal Oxidizers and Catalytic Oxidizers when oxidizing Fugitive Emissions, VOC's or TRI gases to meet the EPA and AQMD requirement for 99% destruction of your waste gas stream. Stoichiometric air to gas ratio is not enough to combust to governmental requirements and the Emission Rx™ Thermal Oxidizer example is given for a Methane waste gas stream that can come from instrument shelters, tank farms or other source of
