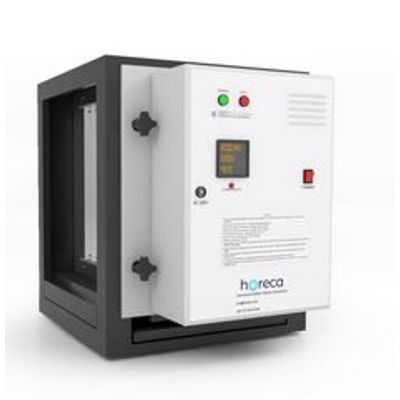

Emsa - Model HMD-300 -Electrostatic Filter

HORECA HMD series Duct Type Electrostatic Filter removes polluted air by absorbing particles such as oil, steam, dust and smoke formed in the air with the principle of electrostatic precipitation.

The air absorbed by the exhaust fan passes through the coarse particulate holder metal filter of the HORECA HMD series duct electrostatic filter and is removed from the large particles.

0.3μm particles pass through the high voltage electric field area. (ionizer) where particles are positive (+) loaded with electric charge. These positively charged particles pass through equally spaced parallel stacked collection plates. These surfaces are negative (-) and positive (+) respectively. Positive charged surfaces push these particles, negative

loaded surfaces attract and collect these particles.

The oils accumulated in the filters fill the oil pan. Filter and oil pan are cleaned periodically.

• Usage areas
• Resraurants
• Hotels
• Cafes
• buffets
• Outdoor Barbeque
• Food Factories
• Industrial Kitchens

It is certified by the University of Sydney that 98% of the oil and smoke in the heavy cooking exhaust is destroyed.

Standard Method of ASHRAE 52.1-1992

•  98.7% efficiency at 2.8 m / s
• 96% efficiency at 4 m / s

• HMD-200 Value Unit
• CAPACITY(%98,7 YIELD) 2.500 m³/h
• CAPACITY(%95,2 YIELD) 3.000 m³/h
• FILTER EFFICIENCY ( 0,3 μm ) 98,70 %
• FILTER EFFICIENCY ( 1 μm ) 100,00 %
• COLLECTOR SURFACE 18,4 m²
• COLLECTING CELL NUMBER 1 Piece
• IONIZATION WIRE NUMBER 9 Piece
• DEVICE DIMENSIONS (Width x Length x Height) 550x690x650 mm
• AIR DUCT CONNECTION SIZE (Horizontal x Vertical) 450x510 mm
• COLLECTING CELL DIMENSIONS (Width x Length x Height) 325x470x465 mm
• WEIGHT 60 kg
• FILTER PRESSURE LOSS ELECTRIC FEEDING VALUES AC 220 / 50  V / Hz
• POWER UNIT (Adjustable) HV/LV - 14/7 KV
• ELECTRICITY CONSUMPTION 70-140 W/h
• MAX. OPERATING TEMPERATURE 150 C°
• ROUGH PARTICLE HOLDERS PRE FILTER Available
• OIL DRAINING PAN Available
• BUILDING AUTOMATION SYSTEM Coupled
• UZAKTAN KONTROL Coupled
• CERTIFICATES CE, Tuv Rheinland, Ashrae 52.1, Ashrae 52.2, ISO 16890, EN779, University of Sydney
• ORIGIN Switzerland / Turkey
