Emuge - Clamping Mandrel

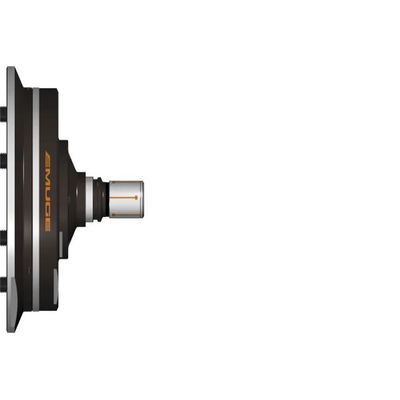

The clamping mandrel is designed for a turning operation of the outer contour, as well as for milling and drilling the workpiece.

Clamping is initiated via a drawbar on the machine side and is transmitted to the clamping bush (system SG) via a clamping bolt. The workpiece is supported via a moving centring head on the tailstock side.
Advantages:
- low-deformation clamping of very thin-walled components
- uniform distribution of the clamping force over the entire clamping length

category: Clamping Mandrel

machining: drill, turning, milling

workpiece: bush

industry: optics & micro

clamping-Ø: 36,00 mm

connection spindle side: short taper 6

connection tailstock side: cylinder ≤ 170

fitting position: horizontally with tailstock

repeat accuracy at control workpiece : 0,008 mm

transferable torque: 27,5 Nm

outer-Ø: 190,00 mm

overall length: 236,00 mm

weight clamping device: 14 kg
