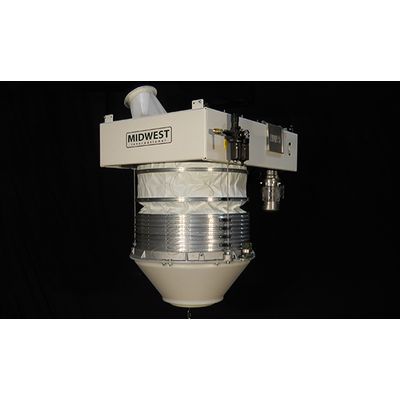

Paragon - Model MD30-EV -Enclosed Vehicle Spouts

The Midwest Paragon Series MD30-EV Bulk Loading Spout is designed to load dry dusty products into enclosed trucks and railcars. The MD30-EV includes a three cable lifting system and a 30" diameter flexible outer spout. Available up to 18ft of vertical travel with loading capacities that generally range between 250-750 STPH. The MD30-EV incorporates a 12" diameter product flow venturi and an 8" diameter dust outlet sized for 1400 CFM of negative withdrawal volume.
