Thermal Edge Inc.

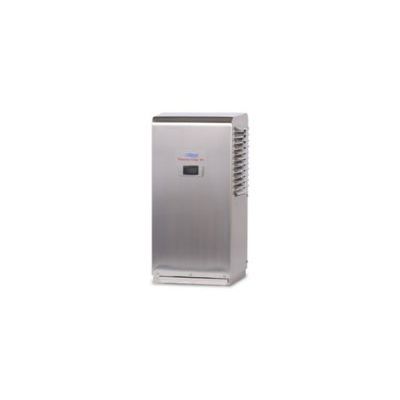

Thermal Edge - Model NE010 -Enclosure Air Conditioner
Engineered & manufactured to endure the most difficult of environments and applications. Thermal Edge air conditioners will exceed environmental requirements in applications like Steel, Food Processing, Petro-Chemical, Cement, Paper & Pulp and Plastics.
Most popular related searches
air conditioner
digital temperature controller
condensate management
temperature probe
corrosion protection
setpoint temperature controller
refrigerant cooling system
corrosion control
remote monitoring
cooling system
KEY DESIGN FEATURES
- Sloped top to allow for water runoff
- Designed with rigid chassis and seam welded shroud
- Thoughtful interior design for easy maintenance
- Narrow body style fits on 12″ enclosure
DIGITAL TEMPERATURE CONTROLLER
- Programmable set point and temperature operating controls
- Visible error and/or alarm messaging
- System status indication & keypad lockout function
COMPRESSOR PROTECTION SYSTEM
- High & Low refrigerant cutouts with fault indication
- Compressor anti short cycle protection
- Compressor run capacitors reduce power inrush, save energy and increase compressor life
ACTIVE CONDENSATE MANAGEMENT SYSTEM
- Constant elimination of condensate
- Increases unit efficiency by pre-cooling refrigerant
UNIT EFFICIENCY
- Pressure operated blower control reduces power inrush and saves energy
- Highly efficient compressor
- Fully insulated & sealed cabinet
- Thermal Expansion Valve to maintain cooling capacity over a broad ambient temperature range
OPTIONS
- High Ambient
- Remote Controller
- Corrosion Protection
- Dry Contact
- Controller Programming
- Integrated Heater
- Open Door Kill Switch
- Custom Finish
- Extended Temperature Probe
- Remote Control/Monitor
- Diagnostics
- Aluminum Housing
SCCR RATING
- All Thermal Edge air conditioners are rated at a default value of 5kA
