Enerac -Â Model 942-XP -Combustion Efficiency Testing System
It is a proven fact: A regular program of combustion efficiency testing and maintenance will lower your fuel expenditures significantly1 while preventing costly and disruptive down-time. Until now, combustion testing procedures were so complicated and time-consuming that they were often left undone or done inadequately. The ENERAC 942-XP Combustion Efficiency Computer has changed all that. The ENERAC 942-XP makes testing, tuning and regular maintenance of your fuel-burning equipment a simple, verifiable procedure that will be done because it can be done, quickly, easily. A fast, accurate procedure that even nonexpert personnel find simple to perform. The ENERAC 942-XP not only keeps your boilers or furnaces operating more cost-efficiently, it keeps them operating. Its automatic CO alarm will help your maintenance personnel identify and deal with potential malfunctions before they become serious.

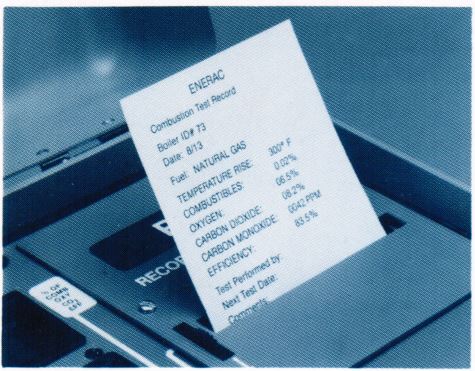

With the ENERAC 942-XP`s Record-of-Maintenance (R.O.M.) printer, you can be certain that your program will be properly implemented. Now, with the 942-XP, you have a record of the gains actually achieved through regular maintenance—standardized data that makes facility-wide or company-wide cross-comparisons easy and effective.
With the ENERAC 942-XP, your maintenance person can perform extraordinarily fast and accurate boiler or furnace analyses and tune-ups, making simple adjustments to achieve the highest combustion efficiency, and fuel economy, possible. And not only will the 942-XP provide all the necessary data, it will also provide print-out documentation of the date and time, the results—including combustion efficiency before and after—and the boiler`s identification code. You`ll know exactly how much fuel is being saved, and who deserves the credit!
The printout is easily reviewed and evaluated on a time-available basis.
You`ll know, beyond doubt, that regular fine-tuning of your fuel burning equipment with the 942-XP is cost-effective, whether on a daily, weekly, or monthly basis. And you`ll have a record to prove how efficient the program has been.
Your maintenance people will do a good job because they have the right tools.

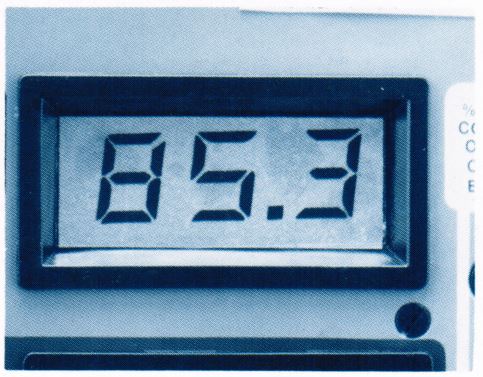

With the simple act of inserting a probe in a stack, the 942-XP analyzes flue gases for the major determinants of combustion efficiency: % oxygen, Carbon monoxide (in ppm), smoke, combustibles, net stack temperature and a calculated C02. At the push of a button, it provides an instantaneous, continuous digital read-out of actual combustion efficiency using three parameters: 02, temperature, and combustibles? It is, therefore, more accurate and more reliable than other units and procedures. It requires no special training, takes just minutes, and it`s foolproof. No trial-and-error test methods. No human error.
As adjustments are made, improvement in efficiency is instantly displayed and documented, so maximum combustion efficiency is achieved, quickly, easily, accurately.

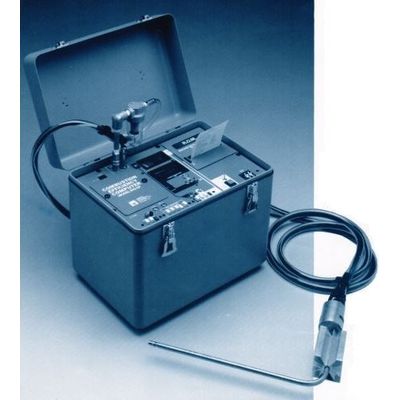

At barely 14 pounds, the battery operated 942-XP is easily portable so it can be taken from building to building, or transported as carry-on luggage. The unit can also be tailor-made to fit varying fuels and equipment. An inconel and aluminum probe capable of withstanding 2000°F comes standard.
Your investment in the 942-XP should pay for itself in four months, or less.
Thousands of dollars in documented _fuel savings annually is quite a testimonial. How many thousands, naturally, depends on your expected annual expenditure for fuel. A commercial user with a $150,000 annual fuel budget, for instance, can expect savings sufficient to pay for the ENERAC 942-XP in less than four months?
And these are just fuel savings. A - Jugular program of maintenance using the 942-XP can result in other savings that can amount to considerably more. Preventing facility down-time, for instance.
If you`ve already invested in an O2 trim system, the 942-XP is absolutely essential. Your own personnel can use it to ensure proper calibration, as well as to detect the presence of CO (partially burned fuels) or combustibles (unburned fuels)- potentially dangerous and expensive problems not detected by O2 trim systems.
It also gives you an in-house diagnostic capability to more effectively interact with your maintenance service.
For more information, including a free demonstration of the enormous money-saving (and time saving) potential of the ENERAC 942-XP in your facility.
Fuel Selections:
- Coal
- Oil
- Oil
- Natural Gas
- LPG (Propane)
(Five position switch indicates fuel type selected. Other fuels may be substituted.)
Physical:
- Dimensions: 13" x 9" x 12" H
- Weight: 14 lbs.
- Material: Drawn aluminum case
Standard Accessories:
- Water trap
- Smoke chart and smoke test paper
- AC power cord.
- Probe: 12 inch inconel with aluminum handle and 10 feet of black rubber hose including protective polyethylene tubing.
Sensors:
- Temperature: Chromel-Alumel (type "K") thermocouple
- Combustibles: Semiconductor type
- Carbon Monoxide: Sealed electrochemical cell, typical life 1-2 years
- Oxygen: Sealed galvanic fuel cell, typical life 6-8 months
Fuel Selections:
- Coal
- Oil
- Oil
- Natural Gas
- LPG (Propane)
(Five position switch indicates fuel type selected. Other fuels may be substituted.)
Physical:
- Dimensions: 13" x 9" x 12" H
- Weight: 14 lbs.
- Material: Drawn aluminum case
Standard Accessories:
- Water trap
- Smoke chart and smoke test paper
- AC power cord.
- Probe: 12 inch inconel with aluminum handle and 10 feet of black rubber hose including protective polyethylene tubing.
Sensors:
- Temperature: Chromel-Alumel (type "K") thermocouple
- Combustibles: Semiconductor type
- Carbon Monoxide: Sealed electrochemical cell, typical life 1-2 years
- Oxygen: Sealed galvanic fuel cell, typical life 6-8 months
