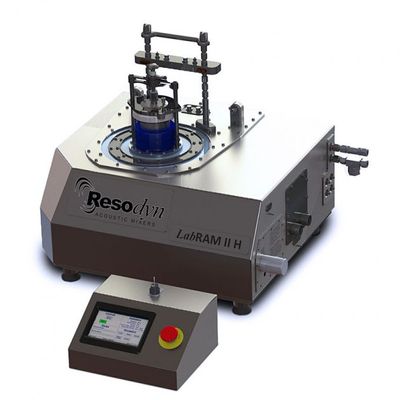

LabRAM - Model II H -Energetics and Hazardous Material Mixer

• Mixing and processing any combination of
  • Solids/Powders – from nano-scale and higher
  • Liquids/Gases
  • Viscous/Slurry materials
• Coating, Milling, Grinding Processes
• Concurrent Mixing and Vacuum at temperature
• Concurrent Vacuum and Curing at Temperature
• Jacketed Mixing Vessel provides optional temperature control from 302°F (150°C) heating to 0°F (-18°C) cooling
• On-board control of processing accessories
  • Integrated vacuum control unit
  • Jacketed vessel temperature control
• Develop, store, and secure up to 100 recipes for permanent recording of operations and measured results
• Monitor mixing parameters in real-time
• Download processing data for analysis and documentation

• Up to 2.2 pound (1,000 gram) payload processing capacity
• All housing and enclosure materials are sealed, purged, 304L Stainless Steel
• Redundant ground paths mitigate static charge build-up
• Remote Control Panel (operation up to 2.5 miles (4 kilometers)
• Laptop based human machine interface (HMI)
• Remote touch-screen operating system
• Sealed, hazardous rated, SS 304 mixing platform prevents entry of mixing materials into the enclosure.
• Height-adjustable holder accepts many vessel types
• Multiple level security and access control
• Temperature sensor – 316L resistance temperature detectors (RTDs) with m12 connector (optional)

• Hazardous Location Vacuum Pump (optional)
• Jacketed Vessel Temperature Control
• Custom Components

General:
Model: LabRAM II H
Technology: ResonantAcoustic® Mixing
Intended Use: Laboratory, Development, Bench-scale Batch Mixing
Unit Dimensions: 13″ H x 32″ W x 30″ D (cm: 33 x 81.3 x 76.2)
Unit Weight: 310 lbs (141 kg)
Country of Origin: USA
Certifications: CE Certified, UL Certification Available

Operating Specifications:
Maximum Payload Capacity: 2.2 lbs (1 kg)
Compatible Materials: Solids, Liquids, Pastes, High Viscosity
Max Vessel Acceleration: 100g at 60 Hz
Max Operating Noise: < 80 db at 3′
Sealed Acoustic Chamber: Yes
Included Vessel Holder Assembly: 5″ Diameter – Adjusts for 2.5″ to 5″ High Vessels
Included Vessels: Custom per Requirements

Control Specifications:
Human Machine Interface: Full Color Touch Screen
Operating System: Proprietary On-Board
Programable Mix Recipe Storage: Yes
Data Logging: Yes
Remote Operation: Yes, via RAMware3

Power Specifications:
Required Voltage at 50/60 Hz: 100-120 / 200-240 VAC
Power Consumption (Standby): 80 watts
Power Consumption (Mixing): 200-1000 watts
Power Cord: Region-Specific Cord Included
