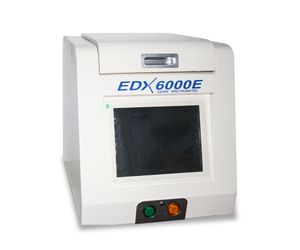

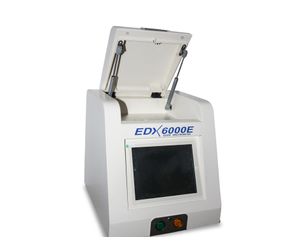

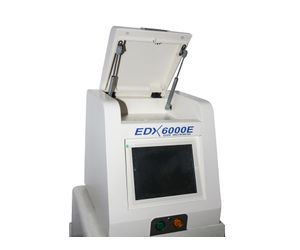

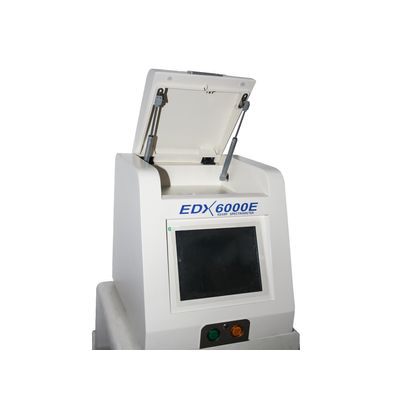

ESI - Model EDX6000E -Energy Dispersive X-Ray Fluorescence Spectrometer
Given the high value of gold at present, the control of the purity of gold is more critical than ever. Whether you are buying gold, selling or producing jewelry, manufacturing metals or recycling scrap metals, you need a fast and reliable method to determine the gold content of the sample for quality control and pricing. The EDX6000E combines the most advanced XRF energy dispersive spectroscopy technology and FP (fundamental parameter method) software to provide users with an efficient and accurate analysis method.
l Jewelry manufacturing factory
l Gold, silver and jewelry store
l Precious metal smelter
l Quality inspection department
l Analysis and testing center
l Pawnshop
Gold, platinum, palladium, K gold, white K gold, etc.
l Fast
l Nondestructive
l Intuitive
l Easy to operate
l Rapid distinction between true and false precious metals
l Rapid distinction between thousand-fold gold and ten-thousand-fold gold
l High-definition built-in camera, clearly displaying the sample area detected by the instrument
Size of Spectrometer: 380mm*372mm*365mm
Size of sample chamber：310mm*280mm*60mm
Weight: 30Kg
Element Range：K19-U92
Analysis content range：2ppm- 99.99%
Detector：AmpTek high resolution Si-pin
DPP Analyzer: 4096 Channel DPP analyzer
Excitation Source：50W X-ray tube
HV unit：0-50kV
Power supply：220ACV 50/60HZ
Environment：-10 °C to 35 °C
