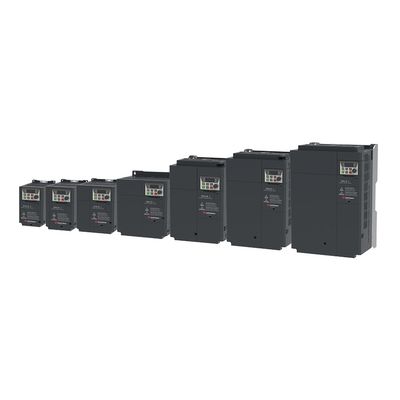

Enertronica Santerno Sinus - Model J -Multi-Purpose, High-Performance Compact Drive for Three-Phase Asynchronous Motors
4 digit 7-segment / 6 key buttons + Built-in potentiometer. Optional Remote Keypad. Smart Copier device for parameters and firmware download/upload with switched-off drive. Conduit Kit for cable entry, NEMA1 protection. Optional field bus cards: CANopen, Ethernet/IP, Modbus TCP, Profibus-DP. Input/output three-phase inductors. Braking resistor. Toroidal output filters.
Most popular related searches
- Protection degree IP20
- Side-by Side installation (Zero Stack)
- Integrated braking module on all models
- Overload up to 120% for 60 s (Normal Duty)
- Overload up to 150% for 60 s (Heavy Duty)
- Operating temperature without derating: -10 °C up to 50 °C, depending on overload type
- Integrated RS485 serial port, MODBUS RTU communication protocol
- Integrated A2 EMC filter for 4T models
- Standard compliance CE, UL, UKCA, RoHS
- Integrated control methods: V/F, Sensorless Vector Control
- Lifetime Detection (fans)
- Selectable motor auto-tuning: standstill or moving
- Compatible with “REMOTE DRIVE” software for remote control
Power Range and Voltage Classes
- Voltage Class 2S/T
- Single-phase Supply
- 220÷240 Vac (-5%/+10%)
- 0.4÷15 kW
Three-phase Supply
- 200÷240 Vac (-15%/+10%)
- 0.4÷22 kW
Voltage Class 4T
- Three-phase Supply
- 380÷480 Vac (-15%/+10%)
- 0.4÷22 kW
