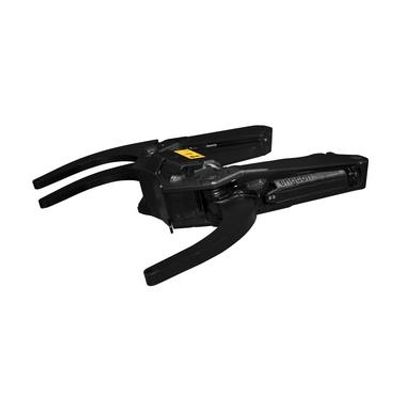

Engcon - Model GRD40—GRD70 -Detachable Gripper
Fromengcon Nordic AB
The gripper cassette simply hooks onto the quick hitch and is then locked in place and the hydraulics connected in a single action – a procedure that takes less than a minute. The gripper is angled at 15 degrees to the plane of rotation, giving a longer reach.
For excavators weighing 6—30 tonsQuick locking
The gripper cassette is locked and the hydraulics connected in one action using a 32 mm open-ended spanner. This allows the cassette to be attached or detached in less than a minute.

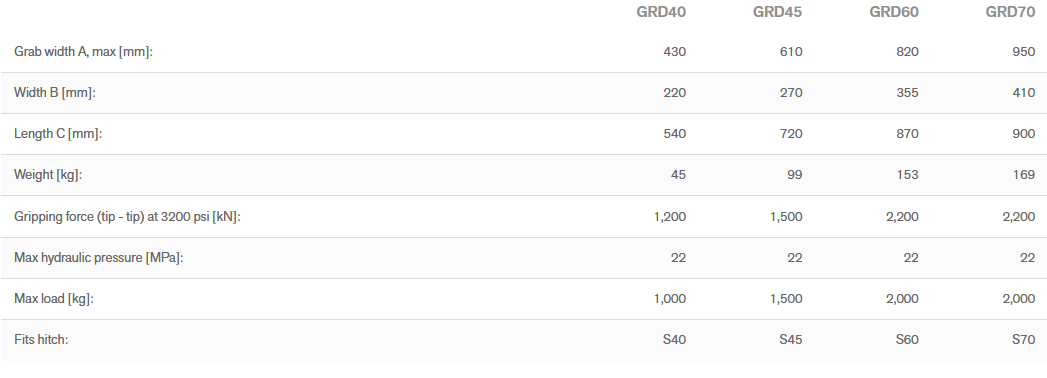

The illustration shows a typical configuration. Technical data may vary. We reserve the right to make changes without prior notice.
