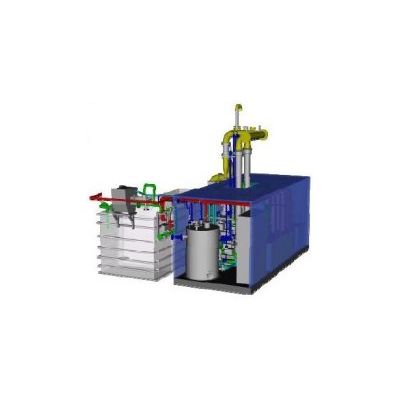

Aquatech - Enhanced Membrane Bioreactor (AQUA-EMBR)

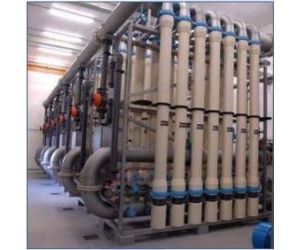

9’10” (3 m) long 8” PVC modules with compact 0.2” (5.2 mm) permanent hydrophilic low-fouling ultrafiltration Membranes; Membranes active area of 355 ft2 (33m2) per module. Fine drum screen. Epoxy coated v-crimp carbon steel aeration tank with duplex tubular diffusers installed. Twin lobe rotary blower with variable frequency drive (VFD) & silencer. Low-head centrifugal feed pump. Low-head vertical inline permeate pump with VFD. Vertical inline backwash (BW) pump. Permeate collection break tank in HDPE/FRP. Chemical dosing skid for CEBI of membranes.
Most popular related searches
aeration tank
sludge holding tank
disinfection dosing system
variable frequency drive
advanced membrane bioreactor
effluent turbidity
vertical inline pump
flow transmitter
chemical dosing
wastewater BOD
Influent Characterization
- Influent COD:0.25
- Influent temperature: 50°F (10°C)-98°F (37°C)
- Influent pH: 6-9
System Performance
- Effluent BOD:
- Effluent COD: >90% removal rate
- Effluent NH3-N:
- Effluent TSS:
- Effluent Turbidity:
- Effluent SDI: <3
- Chemical dosing skid for CEBII of membranes
- PVC/Carbon steel low pressure interconnecting piping and Auto/manual valves
- Digital Instrumentation
- Magnetic flow transmitter-Influent & Feed
- Vortex flow transmitter-Permeate & BW
- Flow indicator-aeration & UF scouring line
- Pressure transmitter-Feed & permeate
- Pressure indicator-Pump & blower discharge
- Dmeter-Aeration tank
- Level switch-Aeration tank and break tank
- Solenoid valves injection box
- NEMA 4X FRP Local Control Box
- Allen Bradley PLC with panel view 600 HMI
- Anoxic tank and mixing units for denitrification, ORP should also be provided in aeration tank
- Anaerobic tank for nutrient removal
- Equalization tank for flow rate and quality balancing of inlet raw wastewater
- Sludge holding tank for sludge storage or further aeration to reduce the sludge volume to be discharged, or
- Centrifuge for sludge dewatering
- Nutrients dosing skid for some industrial wastewater lack of nitrogen or phosphorous
- Effluent turbidity meter
- Disinfection dosing system for reuse purpose
