ENVEA - Model DensFlow -Flow Measurement Instruments for or Dense-Phase Conveying
FromENVEA
Continuous solids mass flow measurement in dense-stream conveying and high levels of throughput. Designed to measure solid flows during pneumatic dense phase transport. The sensor measures density and speed. No wear thanks to the ceramic inner pipe.
Most popular related searches
flow monitoring
mass flow monitoring
flow monitoring system
solids flow monitoring
solids flow
flow meter
mass flow
dust monitoring
temperature sensor
process flow monitoring
- Reliable flow metering in pneumatic dense-stream
- Unlimited throughput volumes can be measured
- Optionally pressure-resistant up to 25 bar
- Installation creates no obstacle in the profile, hence no dead spots in which residue can form
- Measurement independent of the flow speed of the material
- Simple retrofitting
- Maintenance-free
- Contactless measuring procedure (no mechanics)
- Materials: Powder or granules in pneumatic dense-stream transport in steel industry
- Material to measure: Dust and powders
- Working principle: Electromagnetic
- Process pressure: 25 bar, optional up to 110 bar
- Process temperature: Up to +120°C
- Mounting: Flange build-in
- Type of Conveying: Pneumatic densphase
- Flow rates: No limit
- Pipe diameter: Max. DN 150mm
- ATEX rating: Category 3, Cat. 1 applied
- Output: 4…20mA, Modbus, Profibus

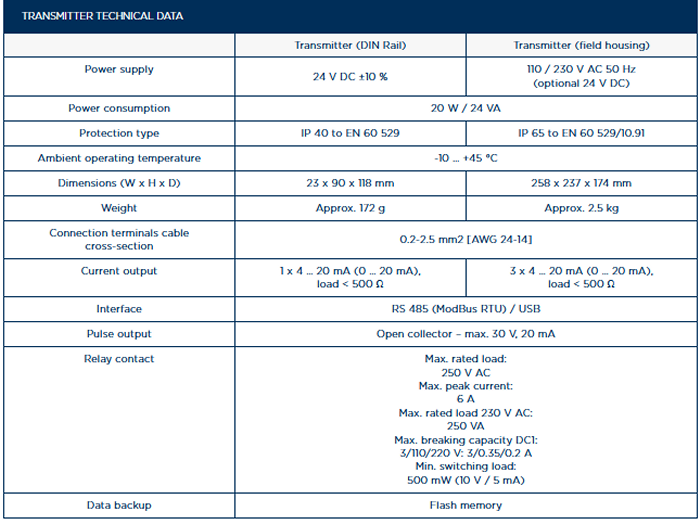

Sensor Technical Data
- Housing: Steel St 52, powder-coated (optional Stainless steel 1.4571 DN 10…125 mm (bigger diameters on demand) Flange EN 1092-1
- Inner pipe: Ceramic
- Protection category: IP65
- Ambient temperature
- Mediums temperature: Sensor electronic: 0 … +60 °C
- Sensor pipe: 0 …+80 °C
- (higher temperatures as option)
- Working pressure: Max. 25 bar, optional 64 bar
- Working frequency: 88 kHz
- Weight: Depending on the nominal diameter
- Velocity range: 1…10 m/s
- Dimension: Ø DN + 150 mm, L 500 mm
- Accuracy: ± 2…5 % in calibrated range

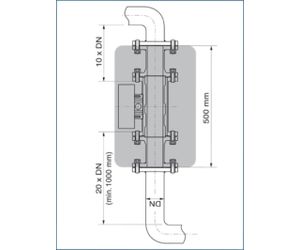

In pneumatic dense-stream conveying , the installation point is specified in accordance with the conveyed inlet and outlet paths.
The assembly of the measuring tube at the specified installation point takes place using a flange installation. Measuring tubes can be supplied in standard form in nominal widths of up to 150 mm with flange connections in accordance with DIN 2576.
