EnviroLine - Envirobar - Vertical Bar Screen
Envirobar vertical screens, BRS series, can be installed in channels or in pumping stations. They fulfill both fine or coarse screening function. They can also be equipped with a fully integrated compactor for screenings dewatering (BRS/P series). The effluent passes through the screen, while the waste is stopped by vertical bars spaced apart according to the desired mesh. The screen start-up is programmed periodically, and by loss of head measurement caused by the accumulation of waste on the bars. The waste is lifted by means of a rake going alternatively upward and downward. Driving of the rake is ensured by a strap.

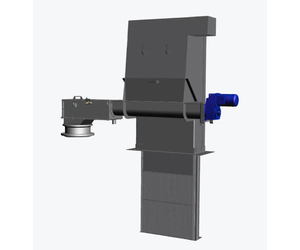

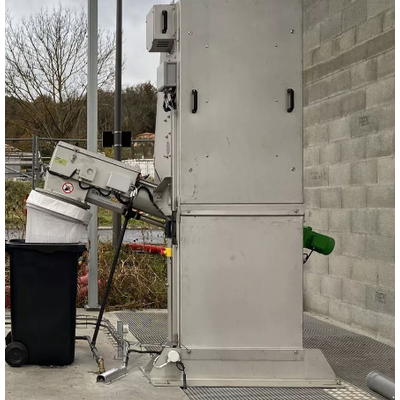

The screening waste is falling down directly into an integrated screw compactor installed transversally where it is compressed and dewatered. Screenings can also be conditionned into a continuous plastic bagging unit before beeing dumped into a container.
- Installation : Pumping station / Channel
- Vertical screening
- Bar spacing from 6 to 60 mm
- Discharge height up to 10 m
- Screenings discharge downstream
- Rake driving by strap
- Simple design, reliable and sturdy

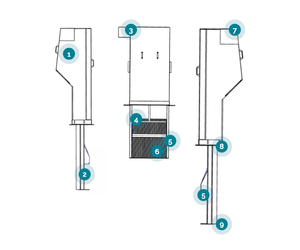

The structure of the screen is made up of two lateral frame structures fitting the required channel width. For channel installation, lateral rubber bands are sealing the gap between screen and civilwork. Envirobar vertical screens are covering configurations up to 1,75 meter width and up to 10 meters discharge height.
The screen consists of fixed bars whose space between them defines the screening mesh. This simple technology is suitable for low and high flow rates, and can be used either as a fine or coarse screen (6 to 30 mm bar spacing).
The upward and downward movement of the rake is generated by the winding and unwinding of a strap. An innovative central guide mechanism directs the toothed rake between the bars for perfect penetration into the bars and an effective waste lifting.

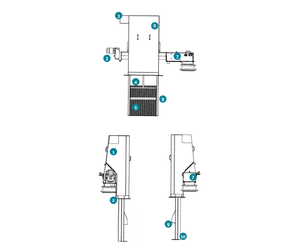

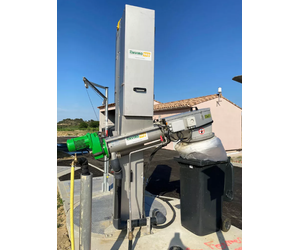

The screening waste can thus be unloaded in a container. They can be also transferred to a conveyor or a screw compactor integrated to the unit (Version BRS/P).
Construction in stainless steel 304L or 316L.
