Eo Vacuum and Overpressure Sterilizer

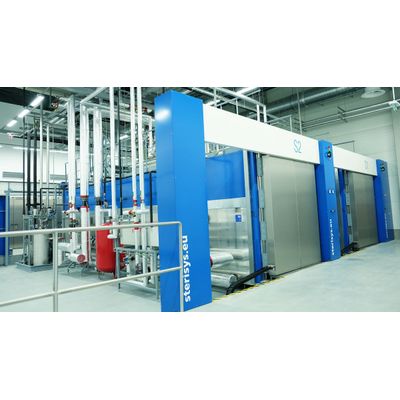

EO vacuum sterilization systems, among others, are offered by sterilization service providers, as this process is particularly well suited for medium to large production volumes. Medical devices are generally sterilized in their tertiary packaging on pallets. The latter are positioned in one or two rows in the chamber, oriented lengthwise or crosswise, depending on the customer and space requirements. STERISYS defines the exact chamber size together with you based on your production volume.
According to the current state of the art, the vacuum sterilization process consists of three phases:
- Preconditioning: preparation of medical devices for the sterilization process
- Sterilization: sterilization of devices in negative pressure
- Degassing: elimination of residual gas in the device according to EN ISO 10993-7
Standard EO gas concentrations for the EO vacuum sterilization process:
- 100% EO gas, packed in drums;
- 90% EO – 10% CO2.
As these EO concentrations are so high, the sterilization system must be designed and manufactured in accordance with the ATEX guidelines.
Through the use of 3D modulation, STERISYS also provides you with support in designing the entire sterilization system and the optimal production flow. The sterilization chamber (including all the necessary process components), the preconditioning chambers, the degassing chambers, the gas treatment unit and also the control room are integrated into your existing or new infrastructure.
The EO overpressure process is particularly well suited for companies with small to medium production volumes. Here medical devices are mainly sterilized in their primary packaging, using a gas blend of, for example, 7% EO and 93% CO2. In contrast to the vacuum process, the gas holding phase during the sterilization cycle is held, for example, at an overpressure of 1.75 bar.
Dimensions of the overpressure sterilization system are determined based on your requirements. Considering the devices to be sterilized, we design suitable baskets, sterilization trolleys and the sterilization chamber together with you.
In addition, STERISYS helps you to seamlessly integrate the EO overpressure sterilizer into your new or existing processes.
Benefits of the overpressure process:
- Due to the low EO concentration, the ATEX guidelines are not applicable (conditions: max. EO gas concentration = 8% and/or LEL < 2.6%).
- The entire sterilization process – the preconditioning, sterilization and degassing of devices – can be carried out in the sterilization chamber. This provides space savings.
- The overall investment costs are lower for the EO overpressure process.
- In comparison to the EO vacuum process, cycle times are shorter, thus the devices reach the market more quickly.
Reproducibility
Sterilization processes can be precisely parameterized, reproduced and documented.
Individual consultations
Together with you, we analyze your requirements and advise you on the sterilization process, the appropriate system and the necessary subsystems.
Know-how
Our sterilization systems and associated subsystems are always developed, manufactured and commissioned at your site in accordance with the newest standards and regulations.
Subsystems
Although gas treatment units are mandatory for both EO sterilization processes, other subsystems, for example, external preconditioning and degassing chambers, can be connected to the sterilization system for each customer specifically.
