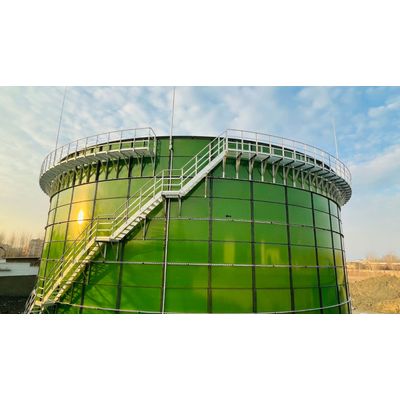

YHR - Model FBE T-01 -Epoxy Coated Steel Tank for Drinking Water Storage Tank

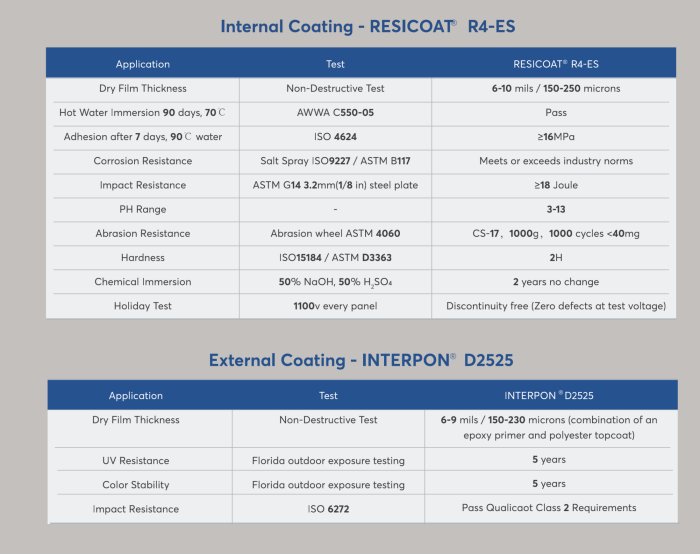

Brand: YHR, Model Number: FBE T-01, Certificates: NSF/ANSI 61 Certified and Listing, Place of origin: Hebei, China, Dry Film Thickness(interior): 5-10 mils / 150-250 microns, Dry Film Thickness(exterior): 4-9 mils/ 100-230 microns, Hot water immersion 90 days, 70°C: Pass, Adhesion after 7 days, 90°C water: ≥16MPa, Corrosion Resistance: Meets or exceeds industry norms, Impact Resistance: > 18 Joule, PH range: 3-13, Abrasion Resistance: CS-17, 1000g, 1000 cycles
Fusion Bonded Epoxy (FBE) is an electrostatically applied coating system with superior coverage and uniform coating thickness. AkzoNobel high-tech RESICOAT R4-ES used on the internal surface combined with the ultra durable INTERPON D2525 on the external surface ensures high performance corrosion resistance for storage tanks and silos. The internal coating RESICOAT R4-ES is NSF/ANSI 61 certified for drinking water contact, and the internal contact surface of every panels are zero defects tested at 1100v before delivering to the clients.
- Excellent anti-corrosion performance
- Flexibility, superior impact-resistance
- 100% coating coverage on panel edges and holes
- Fast installation with better quality: design, production and quality control in factory
- Safe, skill-free: less working aloft, no need for long time worker training
- Less influenced by local weather
- Long life time
- Low maintenance cost and easy to repair
- Possible to relocate, expand and reuse
- Beautiful appearance
