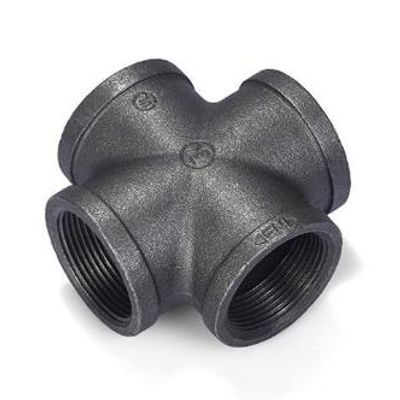

Jianzhi - Model Fig.180 -Equal Cross Black Iron Pipe Fittings
The black pipe crosses fitting is the pipe fitting that controls the fluid or the gas to be transported in all directions. Jianzhi supplied 180 four ways pipe fitting is a kind of equal diameter four-way pipe fitting, which means that the diameter of four outlets is the same. Jianzhi supplied 180 4 way black pipe fittings are made of malleable cast iron and connected by pipe thread. The pressure bearing capacity can reach 2.5MPa, The surface treatment is nature black with a good appearance and performance. Size cover from 1/2`` to 4``. The black pipe cross fitting is one of the most commonly used fittings. We supply them in most buildings, Usually, they need a thicker wall and heavyweight to prevent the damage for 4 directions pipe threading.
- Black Malleable Iron Pipe Fittings | Pipe Crosses

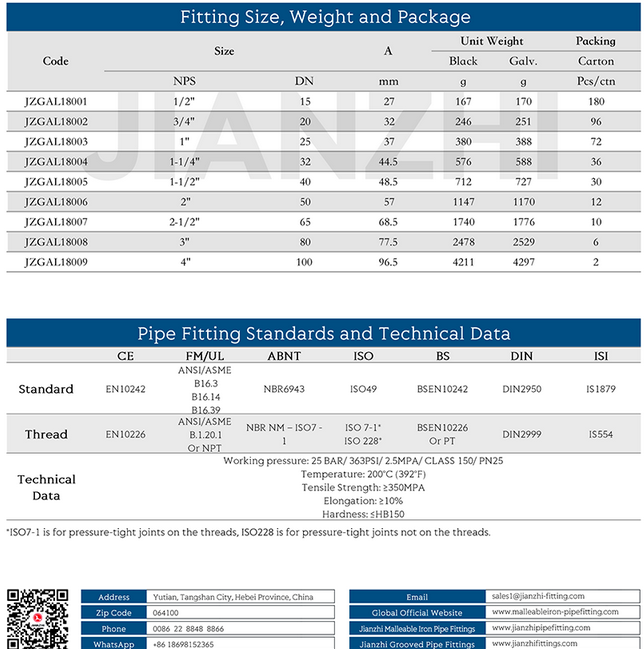

- Size: 1/2``-4``(DN8-DN100, 1/2" 3/4" Common Size)
- Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
- Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
- Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
- UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
- We`ve manufactured black malleable threaded pipe fttings, including elbows, couplings, tees, unions, and bushings in various sizes. If you`re joining your black iron piping to a pipe, choose our cheap black pipe fittings.
Product Description
- Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
- Maximum Temperature: 200°C (392°F)
- Tensile Strength: 350MPA
- Hardness: HB150 (Brinell)
- Elongation Rate: 10%
- Suitable Applications: Water, Oil, Gas, Petro-Chemical
- Material: Black Malleable Iron
