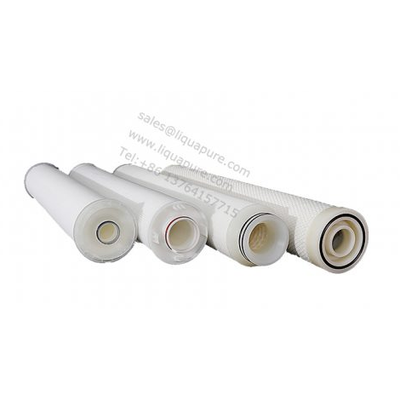

Liquapure - Model 3M -Equivalent Vertical Pleated Design Filter Cartridges
3M Equivalent Vertical pleated design filter cartridges with 6.5” diameter and length up to 60”. It is designed with inner core and injection mold outer cage for outside-in flow pattern and high strength. Compared with traditional cartridge filtration system, it take less footprint, easy change-out for cost saving purpose.
Most popular related searches
filter cartridge
high flow filter cartridge
pleated filter cartridge
cartridge filter
high flow cartridge filter
cartridge filtration system
pleated filter
vertical cartridge filter
reverse osmosis desalination
desalination chemical
Dimensions
- Outer Diameter: 6.5” (165mm)
- Length: 10”, 20”, 40”, 60”,
Materials of Construction
- Core/Cage: Polypropylene
- Media: Polypropylene
- O-rings: EPDM, Viton, Buna, Silicone
Operating Parameters
- Max. Temperature: 80?
- Max. Differential Pressure: 3.5 bar @ 21?
- Recommend change-out:2.4 bar
- Max. Flow Rate: 40”@80 m³/h, 60”@115 m³/h
- Recommend Flow Rate: 40”@38m³/h, 60”@65 m³/h
- Vertical pleated design
- High dirt holding capacity, long service life
- Large filtration area, high flow rate
- Less footprint, easy change-out
- Pre-RO
- Desalination
- Chemicals
- Beverage and Food
- Cooling water
