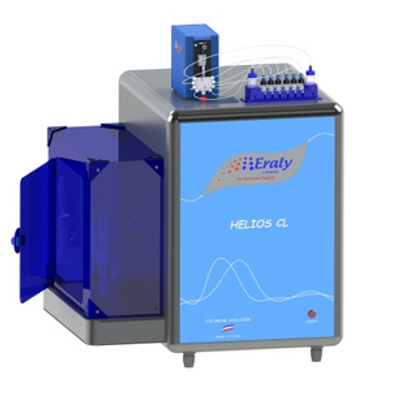

Eraly Associés - Model ASTM D4929 -Halogen / Chlorine Analyzer
The HELIOS CL, is an analyzer used to measure total chlorine (and other halogens) by means of coulometric method. Its measuring capacity extends from traces (<0.5 ppm) to the high concentrations of total chlorine (> 80%). It is also used to measure chlorine On Chlorinated PVC-C. In addition to the accessories for measuring EOX and POX, we offer complete equipment for AOX dosing by agitation and absorption.
Chlorine and AOX analyzer according to the standard ASTM D4929, ASTM D5808, ASTM D5194, ASTM D6721, UOP 779, ISO 9562, NF EN 12260, NF EN 14077
This analyzer is compose with two furnaces, and ensures complete combustion of your samples. The furnace F1 constitutes a real micro reactor, allowing a great flexibility of use. It allows you to program controlled pyrolysis and combustion of your samples through temperature sequences. With this technology, you will no longer generate soot regardless of the nature of the sample and the position of the furnace (vertical or horizontal).
Total Chlorine measurement in Petroleum products, Minerals, Used solvents, Fuels, Waters, Cement, Waste, Coals, Plastics, Oils, Chlorinated PVC, Cokes, Tar, Sediments, Plants...
AOX, POX and EOX Measurement
According standards:
ASTM D4929, ASTM D5808, ASTM D5194, ASTM D6721, UOP 779, ISO 9562, NF EN 12260, NF EN 14077
- Vertical furnace configuration
All types of samples: Solids, Liquids, Gaseous, Liquefied - Horizontal furnace configuration
All types of samples: Solids, Liquids, Gaseous, Liquefied - AOX by Shaker method or Colum method
- Liquid Automatic Sampler up to 50 positions
- Automatic sampler for Gas and/or LPG, with 2 injections loops.
- Mini automatic injector, for liquid samples from 5 to seven positions.
- Auto introductor for solids samples with boat support
