ERBA - Model EC 90 -Industrial Equipment

SHARE

The EC 90 is a piece of industrial equipment designed to meet rigorous performance standards. It forms part of a broader array of products and solutions offered by REBUS, specializing in the advertising sector. With a focus on durability and efficiency, the EC 90 is engineered to provide reliable operation in demanding environments. Its robust design is complemented by a suite of technical features aimed at enhancing productivity and ensuring precise functionality. This equipment is supported by comprehensive product support services that assist users in maximizing their operational potential. Technical documentation, including detailed brochures and catalogues, is available to facilitate understanding and integration of the EC 90 into various industrial applications.

Most popular related searches

sample temperature

sample management

integrity monitoring

electrochemistry

humidity control

biosensor monitoring

laboratory fitting

INNOVATIVE. PRECISE. AFFORDABLE.

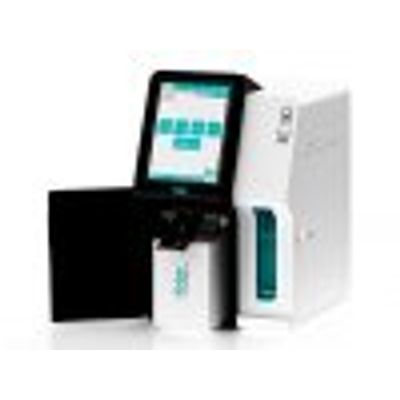

These three words are the core theme of our next generation electrolyte analyser design process. We understand that any new system must be economical to run and reliable to use as much as possible. By utilizing the innovative solid ISEs technology and using high quality components, we have made an analyser that is a great fit for laboratories everywhere.

EVERYTHING YOU NEED. JUST 1 CLICK AWAY.

The best things don’t need to be difficult to understand or to use. On the opposite - the best technology has to be easy to use, with only small learning curve. With this in mind, EC 90 introduces 1-click Analysis. Everything you need is only 1 click away now. Inserting cartridge? Measuring sample? Printing results on built-in printer? Just 1 click and you are there.

INCREASED QUALITY

Trouble Free Operation - State-of the art technology using fully automated production methods. Integrated reference sensor, automatic calibrations and quality reports. High quality components for long life and result stability.

INCREASED PRODUCTIVITY

Simplified daily routine – maintenance free technology, advanced connectivity with one-click analysis. Plug and play

“all-in-one” consumable.

INNOVATIVE

Measuring Na, K, Cl and also iCa. Really small sample volume, super-fast analysis time together with low maintenace and excellent analytical performance. In all of these aspects, EC 90 shows why we call it “Next Generation Electrolyte Analyser”. Other benefits, like state of the art connectivity and data management are also standard.

PRECISE

Employing cutting edge technology, the New EC 90 ISE analyser takes laboratory electrolyte measurements to new heights. The linearity on all the parameters extends above clinically required levels and within-run precision is <1% CV.

AFFORDABLE

The cartridges maintain their sensitivity and first-class performance for 90 days from the day that they are docked into the analyser. The “all-in-one” cartridges cater for any laboratory size since the cartridges integrate the reagent pack with the biosensor and are available in three different kit sizes; small, medium and large, capable of performing 500, 1,000 and 3,000 sample measurements respectively.

SOFTWARE

Interacting with the EC 90 is made easy with large screen and clean software design. Sample results to QC records - everything is just tap away.

Touch Screen : 8.5 inch colour touch screen
Display: 600 x 800 pixel graphic display
Power: 100-240 VAC 50/60 Hz 80 VA
Dimensions: 337mm (D) x 273mm (W) x 422mm (H)
Weight: <8 kg
Printout: built-in, 24 column thermal printer
Operating Conditions: 15-35ºC (59-95°F) / 15-90% humidity
Electronics: microprocessor controlled
Connectivity: 2 x USB, RS 232, LAN
Optional Equipment:
Auto Sampler to be announced
Barcode Scanner: Sample/Patient ID, QC Materials Data

Parameters : Na+, K+, Ca++, Cl-
Technology : Electrochemistry, thick film biosensor cartridge
Principle : direct measurement
Sample Type whole blood, plasma, serum, : dil. urine, aqueous sol.
Sample Volume : 35 and ≥70 μL measuring modes
Sample Temperature : 15–35 °C
Throughput : 100 samples/hour
Analysis Time : 35 sec
Data Storage : 10000 samples
Data Management : fully functional QC with Levey-Jennings and Westgard rules programmable reference ranges advanced flagging Bi-directional LIS
Language/s : English & others on demand
1-point calibration : automatic 1-point calibration with every sample or on-demand
2-point calibration : automatic 2-point calibration every 12 hours or on demand
Standby Mode : automatically controlled or user defined
