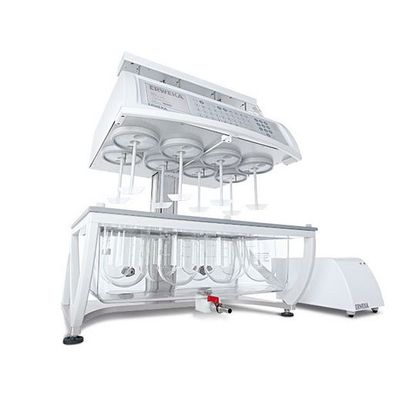

Erweka - Model DT 820 Series -Dissolution Offline System
The ERWEKA Dissolution Offline System is the ideal semi-automatic solution for dissolution testing with automated sampling and subsequent sample storage for later analysis. The system is controlled by a DT 820 series dissolution tester with advanced intelligence.
The DT 820 series equipped with i-Version comes with integrated intelligence for controlling the offline sampling system, which consists of an auto sampling station ASS-8 connected to the DT, a pump (peristaltic or piston) and the sample collector of the FRL series for storing the samples into glass tubes or sealed HPLC vials.
This configuration does not require an additional PC or any software and therefore saves space, money and last but not least software validation work.
Highlights
Advanced dissolution system with a broad feature set.
As all ERWEKA products, the Dissolution Offline Systems are also 100 % USP/EP/JP compliant.
Alpha-numeric touch sensitive keypad with illuminated full-graphic 5.7" dot matrix display.
Standardised shaft design allows using different attachments for all kinds of USP methods.
Simple cleaning of the water bath and the set-up area.
External flow-through heater reduces the influence of external vibrations and ensures a constant temperature.
With a small footprint for optimized laboratory space and 6, 7 or 8 channels.
- Rack (26 x 8) with glass tubes of 10 ml volume
- Rack (18 x 8) with glass tubes of 25 ml volume
- Rack (26 x 8) for HPLC vials, 1.5 ml volume
- Rack (26 x 8) for HPLC vials, 4.0 ml volume
- IQ/OQ/PV documents
- Q/OQ/PV service
- Maintenance contracts
- ERWEKA DT 820 Series with touch sensitive keys and LC display for full control of the Offline System
- Practically maintenance-free piston pump PVP 820
- Sample collector FRL 854 (of up to 26 sampling intervals) with movable tray for easy exchange of vessel racks
- Different sampling containers available – 26 x 8 glass tubes of 12 ml capacity, 16 x 8 glass tubes of 25 ml capacity or 26 x 8 HPLC vials of 1.2 ml or 4.0 ml capacity
- Optional dilution possible
- Fluoropolymer tubing
- Integrated cleaning routine of the FRL 6/7/854
- System control by DT 820 i-version
