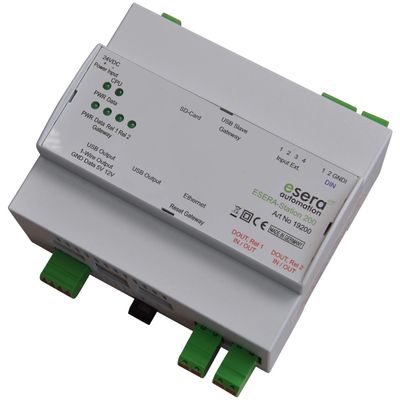

ESERA - Model Station 200 -Central Control Unit

SHARE

The ESERA-Station 200 is the central unit for smart building applications, providing extensive IoT and automation capabilities. It features a professional 1-Wire interface for system control and monitoring. Users can manage heating, lighting, and shutters directly via smartphones or tablets. This device securely transmits sensor data to the cloud, ensuring comprehensive building automation insights. Its open platform supports a variety of software, including Codesys and IP-Symcon, facilitating easy operation and customization. The unit allows expandability with an internal slot for modules and has an optional RS485 interface.

Most popular related searches
smart building
sensor data
security sensor
IoT system

ESERA-Station 200 central control unit, the hardware and software central control unit for smart home, IoT and smart automation applications. Flexibly expandable and future-proof.

The ESERA-Station 200 is the heart of your smart building application and offers extensive possibilities for IoT and many automation solutions. With its integrated professional 1-Wire interface, it is ideal for controlling and monitoring a wide range of systems.

Easy control via tablet or smartphone

With the ESERA-Station 200, you can conveniently control your heating, lighting or shutters via your tablet or smartphone. You can also send a wide range of sensor data securely to the cloud, giving you a comprehensive overview of your building automation.

An open platform for individual applications

The Station 200 is more than just a conventional central control unit. It is an open platform based on industrial standards and supports a wide range of software packages. Thanks to the combination of the embedded computer (Raspberry Pi) and professional ESERA components, it offers maximum flexibility for your individual requirements. It can be easily operated with software such as Codesys, IP-Symcon, OpenHAB, FHEM, NodeRed and many others that are based on a Raspberry Pi.

Expandability and adaptability

The Station 200 has an internal expansion slot for additional modules, e.g. S0 counter, analog input / output. An RS485 interface with electrical insulation is also available as an option. Further additional modules are currently being planned

Versatile application possibilities

Various operating systems and corresponding application software can be installed on the powerful embedded computer. As standard software, we offer the ESERA-Station 200 with the smart home and automation software IP-Symcon.

This central control unit offers you the flexibility to adapt your automation solution entirely to your needs and is therefore a future-proof investment in your smart building.

You can combine the following systems with the ESERA Station 200: The systems listed are examples and depend on the application software and hardware extensions installed. We do not provide a functional guarantee for the specified interfaces and functions:

  • 1-Wire bus via internal ECO controller
  • EnOcean* KNX* (IP-Symcon, Codesys**)
  • HomeMatic*
  • digitalSTROM* (IP-Symcon)
  • XBee/Zigbee*
  • LCN* (IP-Symcon) xComfort*
  • DMX Lighting technology*** (IP-Symcon) Z-Wave*
  • ModBus TCP/RTU***, Slave / Master (IP-Symcon, Codesys**)
  • Voice control from Amazon (Alexa)*
  • M-Bus* (IP-Symcon)
  • SPS Siemens* / WAGO* / Beckhoff* (IP-Symcon, Codesys**)
  • PROFINET Controller / Device (Codesys**)
  • EtherCAT Master (Codesys**)
  • CANopen Master / Slave (Codesys**)
  • EtherNet/IP Scanner / Adapter (Codesys**)
