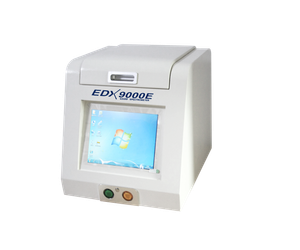

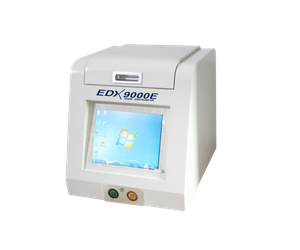

ESI - Model EDX 9000E - Portable XRF Gold Tester
This is unique product introduced in the market for jewelry and precocious alloys measurements. It has built-in color touch screen display with integrated computer for routine software operations and data storage. It is available in both high end PIN diode and silicon drift SDD detectors for all metals detection. The FP based software is most flexible and any unskilled operator can operate the unit without any training. The unit is plug-and-play without need for any services or maintenance. Using a ESI XRF portable gold sorter EDX-9000E, you can read, in under three seconds, the precious metal concentrations in gold coins, jewelry, and other valuable items. Our new generation of portable XRF gold tester equipment enables you to not only analyze precious metals, but with unprecedented precision and confidence. Complete gold analysis, silver analysis, and precious metals analysis in real time using nondestructive gold testing equipment during any sale or acquisition.
• Gold content Analysis Karat Identification
• Precious metal Ag, Pd, Pt and Rh etc analysis
• Gold impurities analysis
• Coating thickness measurement
• Hazardous metals Inspection: Cd, Pb, Ir, Ru
• Electroplate liquid analysis
The EDX9000E Analyzer is ideal for labs and production lines,
particularly where users have:
• Limited bench-top space
• Budget limitations
• The need to position smaller samples quickly and easily for fast output
Gold measuring instruments optimized for fast, non-destructive and precise testing of jewellery samples and precious alloys
>Detector: High performance SDD
>High CPS readout: 30,000-100,000
>Digital Multichannel Analyzer: 4096 channels
>X-ray excitation system:ØPowerful Berkelium window 50 Watts air cooling X-ray tube
Maximum voltage: 50Kv.
Maximum current: 1000uA.
>Measure time: 30 seconds for final report. 3 seconds gold karat identification.
>Element Range: From Magnesium to Uranium
>Built-in high resolution CCD sample camera
>Power supply: 220-240 V, 50/60 Hz
Composition range 2ppm to 100 %
Repeatability RSD≤0.05% Au≥90%
Sample type Solid, powders, liquid
Elements of interests Au, Ag, Pt, Pd, Ru, Rh, W, Os, Ir,
Detector: Silicon Pin detector with 165ev resolution
Basic metals Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc.
High Voltage unit 0 ~ 50KV
Excitation Source: X-ray Tube current 0μA ~ 1000μA
Sample viewing system: High resolution camera
Test time 3seconds ~ 100seconds
