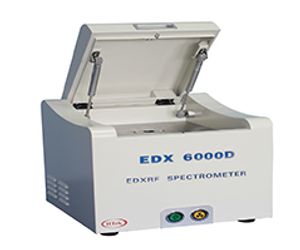

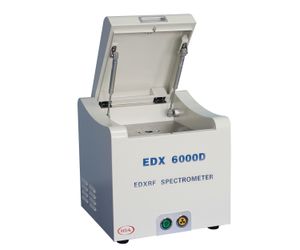

ESI - Model EDX6000D -XRF Gold Analyzer
XRF is a fast, precise & non-destructive tool for accurate analysis of materials & coating thickness. The XRF spectrometer precisely and swiftly determines the percentage by weight (or Karat) in a solid piece of jewellery, precious coins or any other piece of noble metal making use of EDXRF assay technique. It quickly and accurately determines the elemental concentrations of all Gold alloys, Platinum group metals & Silver alloys. The analysis of materials & coating thickness in non-destructive without any requirement for sample preparation, which reduce the analysis time of customer. The ESI XRF Gold Analyzer is an easy-to‑use, cost-effective method to obtain alloy chemistry and karat classification with one nondestructive and test. Additionally, an exclusive ESI XRF Gold Analyzer software feature helps identify gold-plated objects and sends an alert to the screen.
>The ESI XRF gold analyzer is designed to be compact, taking up minimal space.
>An easy-to-use analyzer providing karat and concentration analysis results with one push of a button.
>Accurate chemistry and karat results within 10 seconds.
>Quickly and easily create result certificates
>The ESI XRF Gold Analyzer can be networked for easy access to testing results as they are being generated.
>The analyzer is a safe and secure closed-beam system that requires minimal training. One-button operation provides the most friendly customer experience.
With the ESI XRF Gold Analyzer :
>Price cash-for-gold pieces quickly and accurately
>Identify and characterize a wide range of alloys including silver, platinum, and others
>Identify poison elements in samples
>Manage quality control of refining and melting operations
>More options for coating thickness measurement and alloy PMI
• Gold Karat Identification
• Coating thickness measurement
• Alloy analysis and Alloy PMI
• Hazardous metals Inspection: Hg, Cd, Cr, Pb
• Electroplate liquid analysis
Composition range 2ppm to 100 %
Repeatability RSD≤0.05% Au≥90%
Sample type Solid, powders, liquid
Elements of interests Au, Ag, Pt, Pd, Ru, Rh, W, Os, Ir,
Detector: Silicon Pin detector with 165ev resolution
Basic metals Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc.
Tube voltage 5KV ~ 50KV
HV unit 0 ~ 50KV
Tube current 0μA ~ 1000μA
Sample viewing system: High resolution camera
Sample chamber Dimensions 310*280*60（mm）
Test time 3seconds ~ 100seconds
Instrument dimensions 380*372*362（mm）
Instrument weight 31Kg

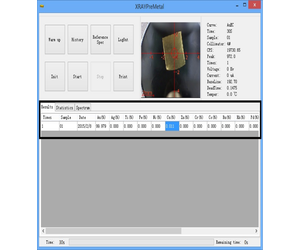

User friendly FP(Fundamental Parameter ) based software with intuitive interface
Data can be exported easily to spreadsheet format, and the memory can be accessed remotely when the ESI XRF Gold Analyzer is networked via its Windows CE operating system. Customized result and reporting certificates, including analytical results, an image of the tested sample, the company logo, and more, can be generated via the optional PC Software with the click of a button.

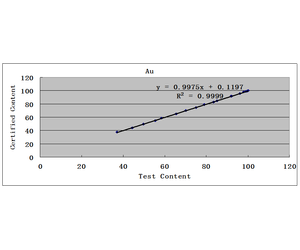

ESI XRF Gold Analyzer accuracy for Au in certified gold alloy standards

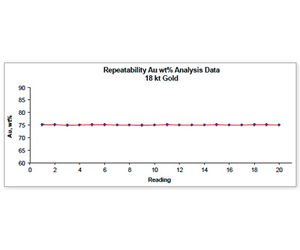

Repeatability Plot: Twenty repeat ESI XRF Gold Analyzer readings on an 18k certified gold alloy standard

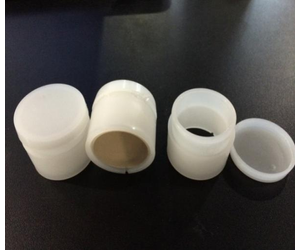

Sample cup for liquid and powders

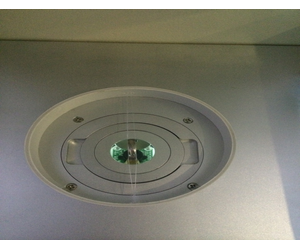

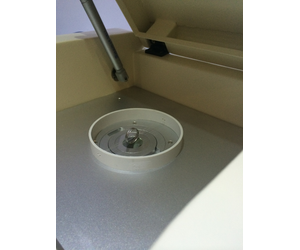

Ring holder
The X-ray fluorescence spectrometer consists of the following parts: X-ray generator (X-ray tube, high-voltage power supply), optics(analysis crystal, collimator and filters), counting and recording system ( Pulse radiation analyzer, calibration meter, timer, integrator, recorder). Different elements have characteristic X-ray spectra with different wavelengths, and the fluorescence intensity of each line has a certain relationship with the concentration of the element. Qualitative and quantitative analysis can be performed by measuring the wavelength and intensity of the characteristic X-ray line of the element to be measured.
