ESI - Model EDX8000T Plus -Fluorescent X-Ray (XRF) Coating Thickness Gauge
Metal plating coating material composition and thickness analysis. Coating analysis can provide valuable information about materials and objects. A simple example is measuring the content of a detail made of a certain alloy without damaging it. Another application is identifying harmful or excessive impurities and plating in jewelry by measuring the coating thickness. Coating thickness analysis can be applied in almost every field, from heavy and light industries to construction and utilities. Overall, coating analysis helps us better understand the composition and quality of materials, ensuring safer and more efficient products and operations. Coating thickness testing and XRF analysis are widely used in utility services and industry. In most cases, it helps to speculate if the details meet the required characteristics, which is crucial in certain fields such as aerospace construction.
Typical coating types include: iron/steel galvanized; Chrome plating on iron/steel; Nickel plating on steel; · Copper plating on steel surface; Copper plated with gold; Plating nickel on copper. These coatings offer benefits such as durability, corrosion resistance, and aesthetic appeal. By leveraging XRF analysis, these coatings can be accurately tested to ensure that they meet the required standards. This technology has revolutionized the way we perform coating thickness tests, paving the way for more efficient and effective methods. As a result, we can confidently rely on these coatings to provide us with the functionality and aesthetics required for a variety of applications.
Since accurate composition analysis of coating elements can be obtained using the XRF 8000T PLUS coating thickness gauge, this device has a wide range of applications in various fields. It is widely used in light and heavy industries where it is necessary to control the quality of production, in metallurgy where it is necessary to accurately detect metal and alloy content and metal sorting, in paints and varices where it is used for lead concentration analysis in production, and in jewelry where it is used to identify gold plating and other metals in jewelry. The XRF 8000T PLUS coating thickness gauge is a powerful tool that helps ensure quality control and accurate testing across industries, contributing to the overall growth and development of these segments.
- Micro-spot vertical optical path, specially designed for coating thickness analysis, can analyze irregular sample thickness
- High count rate Silicon Drift Detector (SDD) for fast, non-destructive, high precision measurements
- High-resolution sample observation system, movable high-precision sample platform, accurate and fast positioning of test points
- The whole series is equipped with thin-film FP non-standard sample analysis software as standard, which can measure the thickness and material composition of multi-layer coatings and single coatings at the same time
- Equipped with high-precision manual X-Y platform, making micro-area measurement more convenient
- EDX8000T Plus coating thickness gauge can be used for PCB coating thickness measurement and metal electroplating coating analysis;
- Measured objects include plating, cladding, lamination, coating, chemically formed film, etc.
- It can measure the thickness of various metal coatings such as ion plating, electroplating, evaporation, etc.
- Chrome plating, e.g. plastics with a decorative chrome finish
- Zinc and other anti-corrosion coatings on steel
- Coatings on circuit boards and flex PCBs
- Contact surface of plug and electrical contact
- Precious metal coatings, such as rhodium on gold substrate analysis
- Analysis of functional coatings in the electronics and semiconductor industries
- Analysis of hard material coatings such as CrN, TiN or TiCN
- Can be extended to add RoHS harmful element analysis function, electroplating solution ion concentration analysis
The ESI EDX-8000T Plus XRF
Specifications
- Coating special analysis software, powerful, easy to learn
- Based on the core FP development of the standard-free analysis algorithm to improve the measurement accuracy
- With automatic distance compensation algorithm

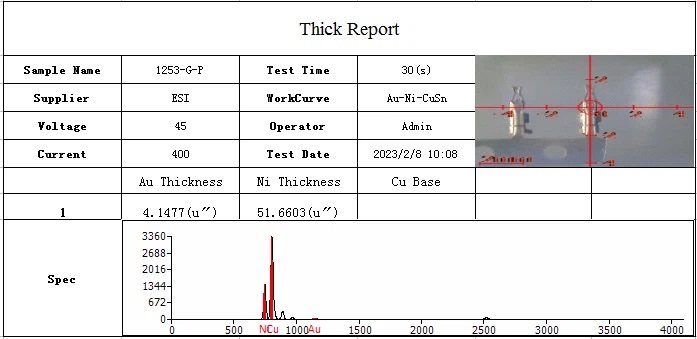

- One-click test, one-click print report, test report template can be customized
- Common coating materials that can be analyzed by the film thickness meter EDX8000T Plus
- Can test the thickness and composition content of repeated coatings, non-metallic, light metal, multi-layer multi-element and organic layers
- Single coating application: such as Ag/Cu, Zn/Fe, Cr/Fe, Ni/Fe, etc.
- Multi-coat coating application: such as Ag/Pb/Zn, Ni/Cu/Fe, Au/Ni/Cu, etc.
- Alloy coating application: such as Zn Ni/Fe, Zn Al/Ni/Cu, etc.
- Alloy composition application: such as Ni P/Fe, simultaneous analysis of nickel phosphorus content and coating thickness
- Instrument Size: 520mm*400mm*450mm
- Sample Chamber Size: 430mm*370mm*210mm
- Weight: 35Kg
- Element Range: Mg12-U92
- Content Range: 1ppm- 99.99%
- LOD: 0.005μm, up to five layers
- Detector: High resolution Peltier Cooling SDD Detector(FSDD Optinal)
- DPP Analyzer: 4096 Channels
- X-Ray Tube: 50W Micro focus tube
- Measuring directions: Bottom up
- Collimator: Auto selection of φ0.15mm,φ0.2mm,φ0.3mm,Optional 0.1*0.2mm
- X-ray Generator: 0-50KV
- Power supply: 220ACV 50/60HZ
- High precision sample platform
- Manual XY table: 80mm*80mm
- Simple and accurate positioning of the sample by hand
- Working Environment: -10°C to 35°C
