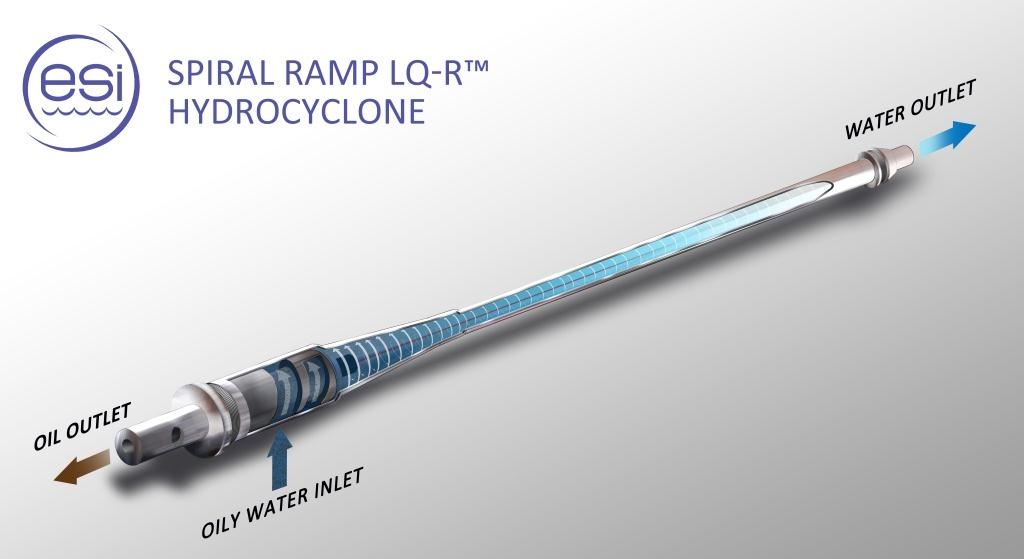

ESI - Model LQ-R -Spiral Ramp Hydrocyclone

Tests at a major University show that ESI`s new Spiral Ramp LQ-R`s design can improve the efficiency of hydrocyclones by as much as 50% (see graph). Converts pressure energy to internal centrifugal energy. Geometry creates vortex to enhance gravity. Oil droplets coalesce in central code (> 5-20 microns). Insensitive to motion or surges. No moving parts. Light Weight. Unaffected by Motion. No chemicals or power (if high enough pressure). Small oily reject stream (2% of inlet flow). Compact Design.
