ESM - Passive Tuned Mass Dampers

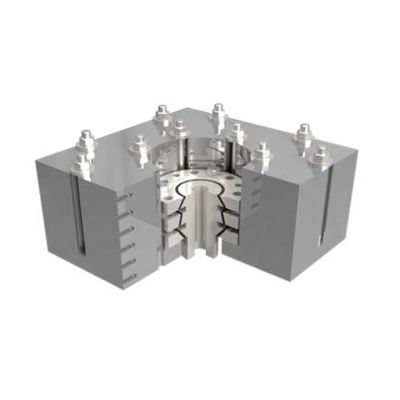

ESM has developed tuned mass dampers (TMD) which are three-dimensionally adjustable. Vibrations can so be reduced in all three translational directions by only one single damper without any time-consuming development effort. These adjustable TMDs are designed modularly and can be provided with vibrating masses varying from approximately 40kg to approx. 500kg. These dampers cover a frequency range from approx. 50Hz to 600Hz. However, not every combination of mass and frequency can be produced. The three-dimensional damper of ESM is simply attached to the structure by a central screw.

Dampers of different size as well as different mass and/or frequency can be produced and provided according to your needs. Please do not hesitate to contact us.

• Axial and radial natural frequency of the 3D-TMD can be tuned independently
• The ESM-developed modular system allows quick adaptation at low costs
• Robust system suitable for wind turbines
• Required natural frequencies can be tuned in factory or on site

• Cost-cutting potential in new wind turbines
• Can be used for a wide frequency range
• Positioned on the gearbox or generator
• Wind turbines, civil engineering, mechanical engineering, vehicle construction
