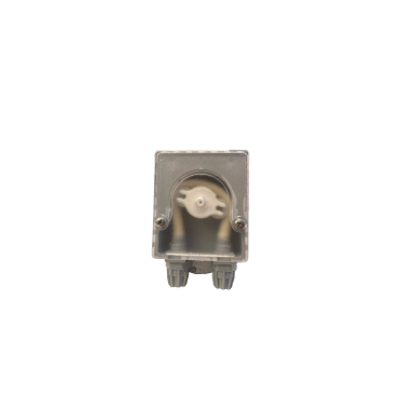

ESPANGOModel IPS24 -Peristaltic Pump

SHARE

The Peristaltic Pump IPS24 is designed for a range of applications, including aromas, agriculture, and washing or detergency sectors. It operates under a pressure of 3 Bar and comes in a standard version equipped with 3 rollers, encapsulated within a closed box for protection and durability. While the standard specifications are robust, variants can be tailored upon request to meet specific industrial needs. This pump excels in precise fluid dosage, adhering to high accuracy standards essential for industrial applications. The closed housing ensures minimal exposure to environmental factors, enhancing the longevity and reliability of the pump. Its application versatility makes it suitable for diverse industries requiring consistent and dependable dosing solutions.

Most popular related searches

Peristaltic pump with adjustable fixed flow from 0.1 l/h to 8 l/h, ignition through external system, open case, 230 Volt or 24 VDC power supply.

  • Suction m. : 2
  • Input : 230 Vac 50 Hz
  • Typical application : Machines
  • Dimensions : 58 x 86 x 78 mm
  • Delivery head m. : 10
  • Body material : PP + glass
  • Head material : PP + glass
  • Tubing material : Teknoprene TPV
  • Channels : 1
  • Weight Kg : 0.300
  • Flow rate : 0,1 - 8 l/h
  • Motor power : 5 Watt
  • Delivery head : 1 Bar
  • Speed regulation : No
  • Reversibility : S
  • Rollers : 2
  • Body : IP00
  • Flow rate tolerances : ± 5%
  • Standard tubing : 4 x 7 mm
