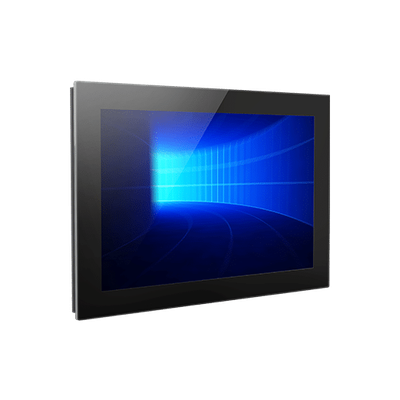

Estone Group - Model PPC-4910 -10.1 inch Edge AI Panel PC
The PPC-4910 is a 10.1-inch industrial panel PC designed for edge AI applications. It features an NXP i.MX8M Plus Quad Core ARM processor and an integrated Neural Processing Unit (NPU) capable of performing machine learning tasks by leveraging up to 2.3 TOPS (Tera Operations Per Second). The panel PC supports advanced AI frameworks like ONNX Runtime, TensorFlow Lite, and DeepViewRT, making it an ideal solution for industrial control, building automation, and interactive IoT applications. The device includes dual MIPI CSI camera inputs, supporting machine vision functionalities. It also offers multiple power input options including Power over Ethernet (PoE), with flexible I/O interfaces such as RS-232/485, CAN bus, and GPIO. A high-brightness display option up to 1000 nits enhances usability in challenging lighting conditions. The robust design with IP65-rated edge-to-edge tempered glass front further adds to its utility in demanding environments.
10.1” Frameless Edge AI Touch Panel PC / HMI with NXP i.MX8M Plus ARM Processor, 3mm Tempered Glass Touch Screen, CAN bus, PoE, 12VDC or 24VAC Power Input
The PPC-4910 is an all-in-one 10.1” industrial panel PC with 1280 x 800 touch screen. The system is equipped with NXP’s i.MX8M Plus Quad Core ARM processor with a guaranteed 10-year lifespan. Edge to edge glass front panel meets IP65 rating. This panel PC with options to support Power over Ethernet (PoE), 12VDC or 24VAC power inputs. The integrated AI/ML Neural Processing Unit makes it perfect for smart industrial control, building automation, HMI, vending machine and interactive IoT applications.
The PPC-4910 is based on NXP i.MX8M Plus processor with a Neural Processing Unit (NPU) AI accelerator operating at up to 2.3 TOPS. Paired with the NXP eIQ machine learning (ML) software development environment, the system can take the advantage of its integrated hardware accelerator to perform artificial intelligence (AI) and machine learning (ML) tasks, supports ONNX Runtime, TensorFlow Lite, and DeepViewRT inference engines for many Edge AI applications.
The mainboard of the panel PC supports two MIPI CSI camera inputs with two Image Signal Processor (ISP) channels, providing customization options to combining AI and embedded vision systems together for intelligent vision systems and vision-based machine learning applications.
The on-board CAN bus interface of the PPC-4910 panel PC can be used for projects that require reliable and efficient real-time communication. The error-checking mechanisms incorporated with CAN bus also help detect and correct errors during data transmission, which is crucial in applications like medical devices, transportation, industrial HMI, where data integrity is essential and malfunctions can lead to safety hazards or production losses.
The power input of the panel PC can be custom configured to support Power over Ethernet (PoE) IEEE 802.3at (POE+), 12V DC, 24V AC and 9-36V DC wide voltage power input. The on-board terminal connector provides interface selections for GPIOs, RS-232, RS-485 or CAN bus serial communication. An additional Ethernet port option is also available for ODM projects.
The 10.1″ touch panel PC reference design offers custom options of enhanced brightness levels with LCD panels up to 1000nit, making it suitable for use in various environments where standard displays might struggle to provide clear visibility. Example applications are industrial monitoring and control, transportation systems, marine displays and medical equipment.
