Etaeval - Flow Rate Measurements With Propeller Type Current Meters

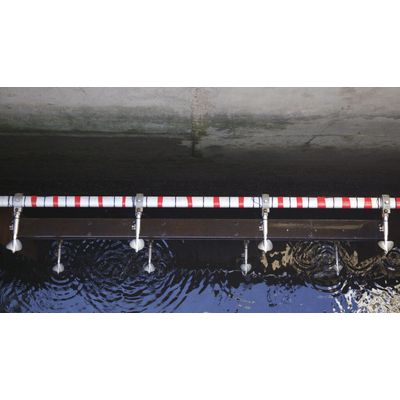

Flow rate measurements with propeller type current meters. In case of short intakes, open channel flows, and also closed conduits propeller type current meter can be used. The procedures are described in the IEC (International Electrotechnical Commission) standard 60041 "field acceptance tests to determine the hydraulic performance of hydraulic turbines, storage pumps and pump turbines". The following three images depict a typical installation, which was performed with current meters fixed in the stop log notches in the intake of a low head hydro plant.
