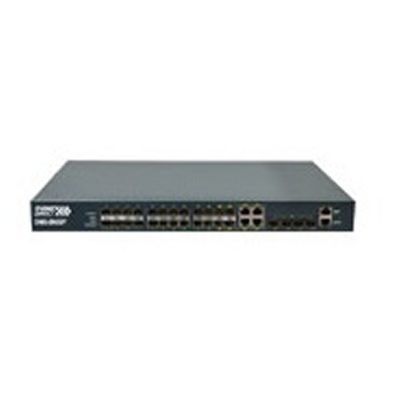

EthernetDirect - Model JMG-24F4 -Industrial Gigabit Managed Switch
The Jaguar Managed Switch is a cost effective solution to efficiently and securely transmit bandwidth demanding data, voice, video, and wireless applications with optimized performance. The switch can even handle large network loading and also help to link SCADA or application servers. Jaguar managed switch incorporates innovative design for scalability, security and superior investment protection.
Most popular related searches
- 24 10/100/1000TX ports
- 4 combo ports - 10/100/1000TX or Gigabit only SFP
- Supports Full/Half Duplex, auto-negotiation, MDI/MDI-X on TX ports
- Supports SNMP / RMON network management
- Supports Qos, Cos
- Supports DHCP client
- Supports RSTP redundancy
- Event notification by email, SNMP trap
- IGMP snooping – for I/O over Ethernet/IP
- VLAN configuration
- QoS – port based, tag based
- Configuration – Web Enabled, other software packages
- SNMP, Web or Console based configuration
- Alarm relay output for loss of power
- Power input 100-240 VAC 0.8A
- Rigid metal case with IP30 rating, panel mountable – bracket furnished
